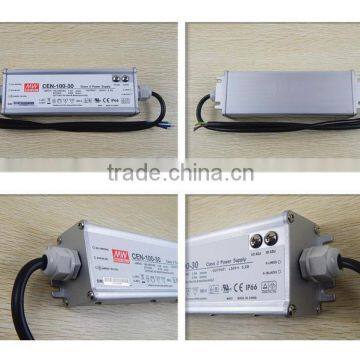

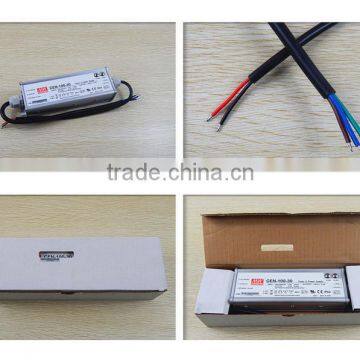

CEN-100 100W Meanwell Badminton Court Lighting Driver Quality Choice
- FOB
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | MEAN WELL | |
| Model Number | CEN-100-12 /15 / 20 / 24 /27 /30/ 36 / 48 /54 | Output Power | Other, 0-100W | |
| Output Type | Single | Input Voltage | Other, 90-295VAC | |
| Output Voltage | 12V/15V/20V/24V/27V/30V/36V/48V/54V | Output Frequency | 47~63Hz | |
| Output Current | 0-4.8A |
Product Description
* Universal AC input / Full range (up to 295VAC)
* Built-in active PFC function
* 100% full load burn-in test
* High reliability
* 3 years warranty
MODEL | CEN-100-20 | CEN-100-24 | CEN-100-30 | CEN-100-36 | CEN-100-42 | CEN-100-48 | CEN-100-54 | |
OUTPUT | DC VOLTAGE | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
C&C OPERATION VOLTAGE | 13 ~ 20V | 15.6 ~ 24V | 19.5 ~ 30V | 23.4 ~ 36V | 27.3 ~ 42V | 31.2 ~ 48V | 35.1 ~ 54V | |
CURRENT RANGE | 0 ~ 4.8A | 0 ~ 4A | 0 ~ 3.2A | 0 ~ 2.65A | 0 ~ 2.28A | 0 ~ 2A | 0 ~ 1.77A | |
RATED CURRENT | 4.8A | 4A | 3.2A | 2.65A | 2.28A | 2A | 1.77A | |
RATED POWER | 96W | 96W | 96W | 95.4W | 95.76W | 96W | 95.58W | |
RIPPLE & NOISE | 2.0Vp-p | 2.7Vp-p | 3Vp-p | 3.6Vp-p | 4Vp-p | 4.6Vp-p | 5Vp-p | |
VOLTAGE ADJ. RANGE | 17 ~ 22V | 22 ~ 27V | 27 ~ 33V | 33 ~ 40V | 37 ~ 46V | 43 ~ 53V | 49 ~ 58V | |
VOLTAGE ADJ. RANGE | 3.12 ~ 4.8A | 2.6 ~ 4A
| 2.08 ~ 3.2A | 1.72 ~ 2.65A
| 1.48 ~ 2.28A | 1.3 ~ 2A | 1.15 ~ 1.77A | |
VOLTAGE TOLERANCE | 10% | |||||||
LINE REGULATION | 3.0% | |||||||
LOAD REGULATION | 5.0% | |||||||
SETUP, RISE TIME | 3000ms / 230VAC 5000ms / 115VAC at full load | |||||||
HOLD UP TIME (Typ.) |
| |||||||
INPUT | VOLTAGE RANGE | Note.4 90 ~ 295VAC 127 ~ 417VDC | ||||||
FREQUENCY RANGE | 47 ~ 63Hz | |||||||
POWER FACTOR | PF 0.9 at 65 ~ 100% load, 115VAC / 230VAC ; PF>0.97 / 115VAC PF>0.95 / 230VAC at full load | |||||||
EFFICIENCY (Typ.) | 88% | 89% | 90% | 90% | 90% | 91% | 91% | |
AC CURRENT (Typ.) | 1.4A/115VAC 0.7A/230VAC | |||||||
INRUSH CURRENT (Typ.) | 60A/230VAC | |||||||
LEAKAGE CURRENT | <0.75mA / 240VAC | |||||||
OTHERS | MTBF | 519.5Khrs min. MIL-HDBK-217F (25 ) | ||||||
DIMENSION | 195*62.5*40.5mm (L*W*H) | |||||||
PACKING | 0.6Kg; 24pcs/15.4Kg/1.11CUFT | |||||||
