ZAY7045 Portal Milling Machine

FOB Price

US$ 800 - 1,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	LINUO	Model Number	ZAY7045
Type	Universal	CNC or Not	Normal
Voltage	380V	Power(W)	1.5KW
Dimension(LWH)	1020 x 820 x 1160mm	Weight	333KG
Certification	CE	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

1.ZAY7045 portal milling machine
2.Max drilling 45mm
3.Max face milling 80mm
4.Max end milling 32mm

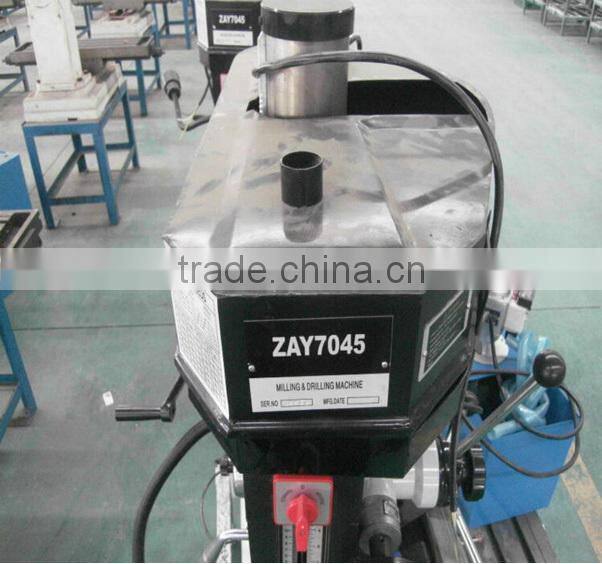

ZAY7045 portal milling machine

Features:

Product Description
Belt-driven and round column
Milling, drilling, tapping. Boring and reaming
Headstock swivels 360 horizontally
Micro feed precision
12 steps speed
Adjustable gibs on table precision
Posive spindle lock
Strong rigidity, powerful cutting and precisely positioning.

SPECIFICATIONS

MODEL	ZAY7045
Drilling capacity	45mm
Face milling capacity	80mm
End milling capacity	32mm
Distance from spindle nose to table	450mm
Min.distance from spindle axis to column	203.5mm
Spindle travel	130mm
Spindle taper	M.T.4 or R8
Step of spindle speed	12
Range of spindle speed 50Hz	80-2080r.p.m
60Hz	100-2500r.p.m
Swivel angle of headstock ( horizontally )	360°
Table size	800 x 240mm
Forward and backward travel of table	175mm
Left and right travel of table	500mm
Motor Power	1.5KW
Net weight/Gross weight	283/333(kgs)
Packing size (L x W x H)	1020 x 820 x 1160mm
Loading amount/20'' container	28pcs
