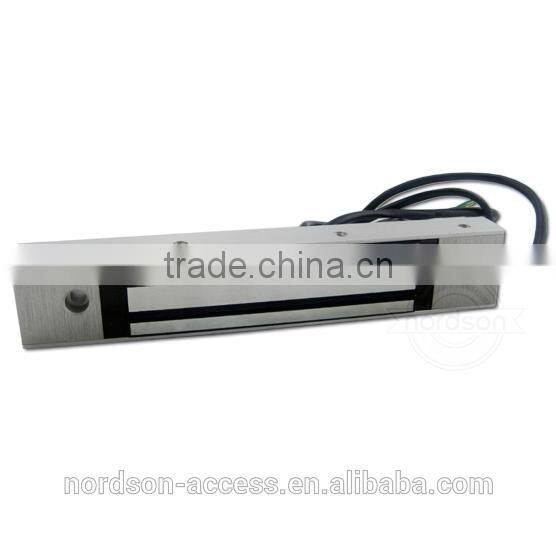

Easy Install Electromagnetic Lock for Access Control System ( NE-280S )
- Shenzhen
 - T/T Credit Card PayPal

You May Like
-


Automated Systems Electromagnetic Lock for Automatic Door (NE-90)
 -


Nordson NW-280 Waterproof Magnetic Lock (Stainless Steel)
 -


2015 Nordson Newest NE-280 Electric Gate Locks With 12V/24V Adjustable Single Door Electronic Lock (280KG/ 600Lbs)
 -


Nordson New NE-280S Pushbutton Lock With LED for Access Control System( NE-280S )
 -


2015 Nordson Latest Product NW-280 Waterproof Magnetic Lock (Stainless Steel)
 -


2015 Most Popular Nordson NW-280 Digital Door Lock (Stainless Steel)

Product Details
| Place of Origin | Guangdong, China | Brand Name | Nordson | |
| Model Number | NE-280S |
Product Description
Easy install electromagnetic lock for access control system
( NE-280S )

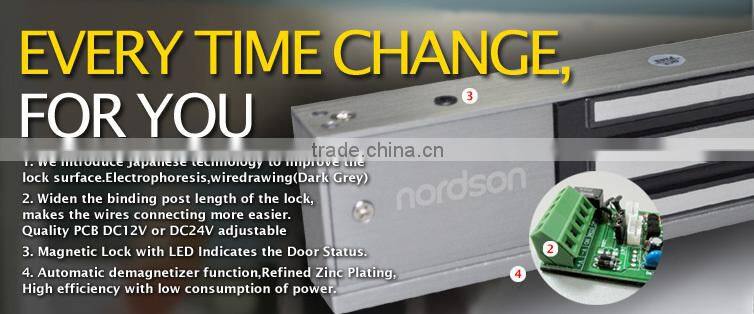

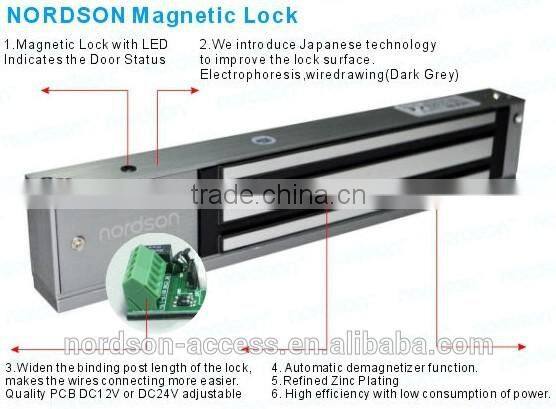

Hot selling point for Easy install electromagnetic lock NE-280S
1. with LED indicates status;
2. introduce Japanese Tech;
3. voltage adjustable;

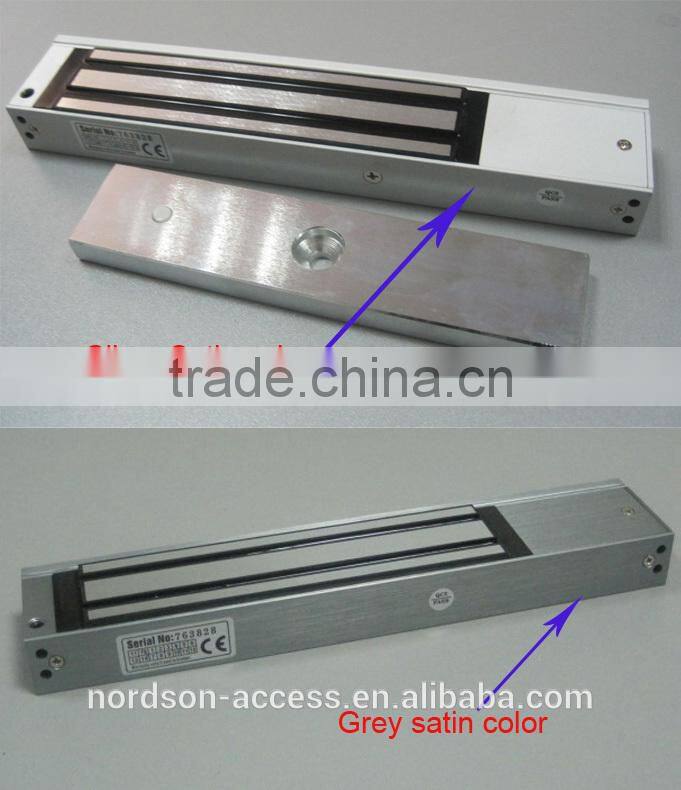

4. Silver & Grey satin support;

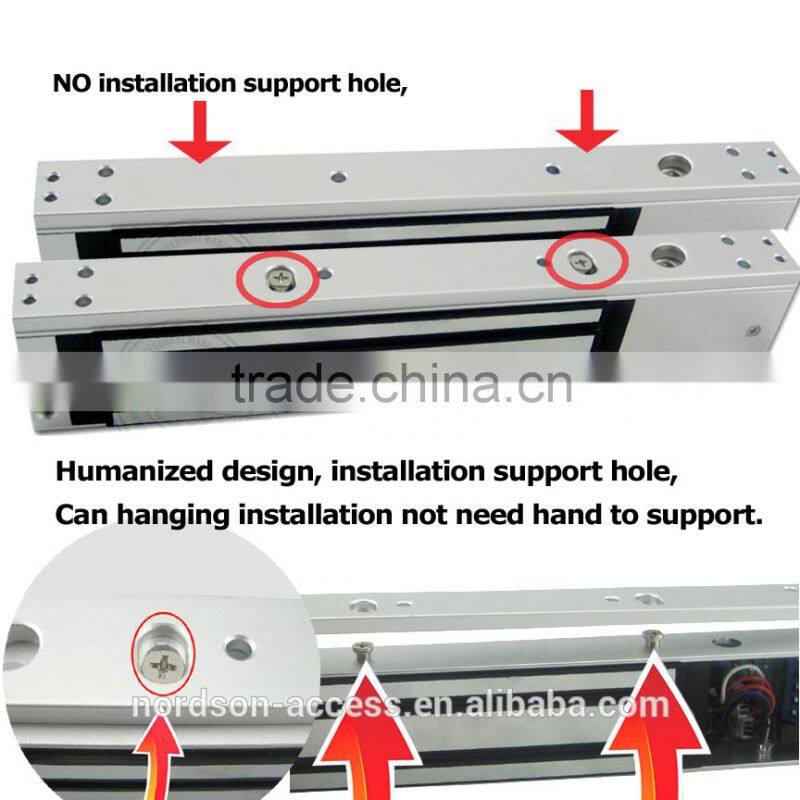

5. Easy install with screw mounted;
6. IP65, totally waterproof customized.
7. Suit for multi doors.
NOTE: IP65 Waterproof & easy install hole screw, bracket for installing should be customized in advance.
Item Specifics for Easy install electromagnetic lock NE-280S
| Lock Size | 250Lx48Wx25H(mm) |
| Armature plate | 180Lx38Wx11H(mm) |
| Holding Force | 280kg (600Lbs) |
| Voltage | DC12V or DC24V (adjustable) |
| Current Draw | 12V/500mA 24V/250mA |
| Signal Output | Dry Contact |
| Max Rating of Contact Current | 3A |
| Time | 0/3/6/9sec |
| Surface Temp. | ≤+20°C |
| Operating Temp. | -10~+55°C(14-131F) |
| Suitable Humidity | 0~90%(non-comdensing) |
| Finishes for Shell | Anodized alninum |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| Weight | 2kg |
| Standard Packing | 12pcs./carton |
| Suitable For | Wooden door,Glass door,Metal door,Fireproof door |
