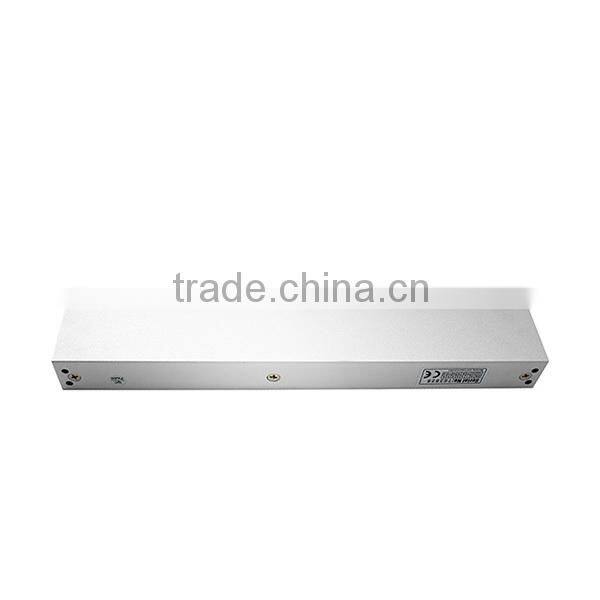

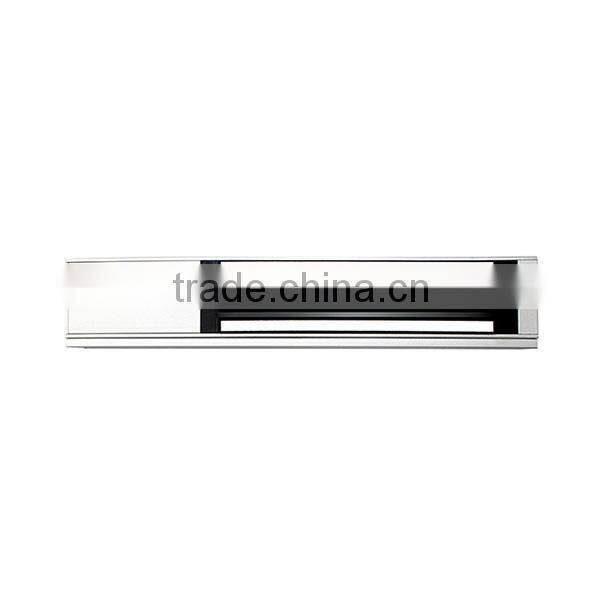

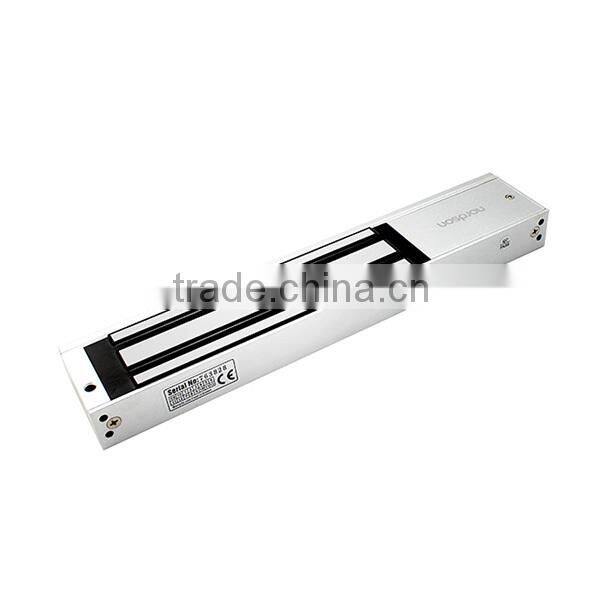

DC12V or DC24V Electromagnetic Lock NE-380ST

Lock Size: 280Lx49Wx29H(mm)

Armature plate: 190Lx39Wx11H(mm)

Holding Force: 380kg(800Lbs)

Voltage:DC12V or DC24V (adjustable)

Current Draw: 12V/500mA 24V/250mA

Signal Output: Dry Contact,Max Rating of Contact Current 3A

LED indicates the door is unlock,Green indicates the door is lock

Time: 0/3/6/9sec

Suitable for: Wooden door , Glass door ,Metal door , Fireproof door

Surface Temp: ≤+20°C

Operating Temp: -10~+55°C(14-131F)

Suitable Humidity: 0~90%(non-comdensing)

Finishes for Shell: Anodized aluminum&surface texture processing

Finishes for Magnetic: Zinc

Finishes for Armature: Zinc

Weight: 2.2kg

Standard Packing: 12pcs

Quality guarantee: Warranty for three years, maintenance forever, change within 3 months be cause of product quality.

NE-380 Electromagnetic Lock Series (800Lbs) except NE-380ST (LED & Time), also include NE-380S (LED) and NE-380

Packaging: Neutral Package.

Shipping: Small quantity within 1-5 work days after receipt of remittance,

                   Large quantity within 14 work days after receipt of remittance.

 For the non-human factors of product quality issues, NORDSON offer three-year warranty services for electromagnetic lock;

3-year warranty for access control panel, electric bolt and electric strike;

1 year warranty for exit button, bracket, and power supply.

The customers should take charge of the material and the maintain fees if the product damaged under other conditions.

Picture show
