Home > Products > general purpose relay > kontron 11 pin with LED lamp and test button general purpose relay

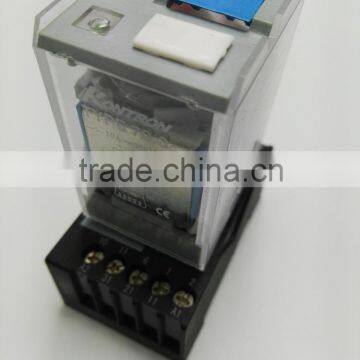

kontron 11 pin with LED lamp and test button general purpose relay
USD $1.5 - $2
/ Piece
300 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- SHANGHAI
- Credit Card
You May Like
-
digital din rail digital LED diaplay volt/current panel meter
-
LCD Volt/current digital din-rail Ampere panel meter
-
LCD Volt/current digital din-rail energy meter
-
LCD Volt/current digital din-rail ZY72 panel meter
-
LCD Volt/current digital din-rail energy meter with memory function
-
low power low rating pcb relay
Product Details
| Place of Origin | Shanghai, China | Brand Name | kontron | |
| Model Number | type70.3 | Theory | Electromagnetic Relay | |
| Usage | General Purpose | Size | Other, 34.7x34x59mm | |
| Protect Feature | Other, dust-cover | Contact Load | High Power |
Product Description
general purpose relay
| size | 34.7x34x59MM |
| contact form | 3C |
| contact material | Agcdo |
| contact rating | 10A250VAC/DC28V |
| contact resistance | ≤50mΩ |
| coil voltage | DC:5,6,9,12,24,48,60,110,220 AC:5,6,9,12,24,48,60,110,220,240,380V |
| coil power | 1.5W;2.8VA |
| strenth between coil&contact | 2500VAC |
| strength between contact&contact | 1500VAC |
| insulation resistance | ≥100MΩ |
| mechanical life | 1000000 ops |
| electrical life | 100000 ops |
| working temprature | -40-85c |
| weight | 82 grams |
| equal model | Schrack:RT |
