Bronze Water Pressure Reduction Valve
- FOB Ningbo
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Pressure Reducing | |
| Pressure | Medium Pressure | Power | Hydraulic | |
| Material | Casting | Temperature of Media | Normal Temperature | |
| Media | Water | Port Size | 1" | |
| Place of Origin | Zhejiang, China | Model Number | WD-1206 | |
| Brand Name | World Brass |
Product Description
Specifications
-Maximum working water pressure:400PSI & Max temperature:180F.-Bronze housing&cage.
-Nylon reinforced neoprene diaphragm.
WD-1206 PRV-Bronze Water Pressure Reducing Valve
♦ Size:1"
• Maximum working water pressure 400PSI.
• Maximum working water temperature 180°F.
• Reduces pressure range:15 to 150 PSI.
• Factory set at 50 PSI, adjustable from 25-75 PSI.
• Threaded connections (FNPT) ANSI B1.20.1.
• Copper connections (FC) ANSI B16.22.
• CPVC tailpiece: Max.hot water temp. 180°F @ 100 psi.
:Cold water rated temp. 73.4°F @ 400 psi.
-Corrosion Resistant Threaded Ends
-The Working Tempreture:-20 C°≤ t ≤180C°.
-No cage screws to rust.
-Bottom clean-out plug for easy service.
-Replaceable in-line cartridge assembly.
-Compact valve body is of all-bronze construction.
-Standard built-in bypass for pressure equalization.
-Integral thermoplastic cage prevents galvanic corrosion.
-Cartridge design resists mineral deposits and corrosion.
-Reduces supply pressure up to 400 PSI to a more functional range.

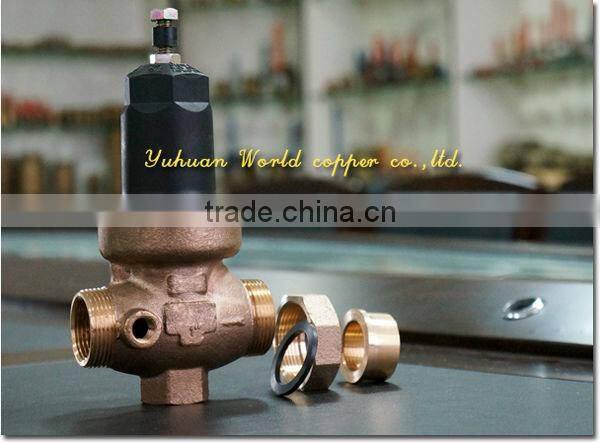

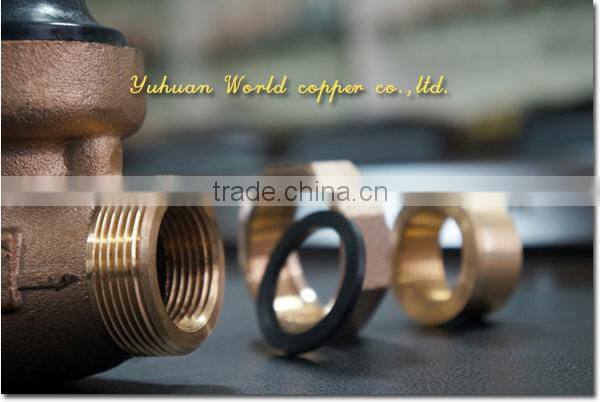

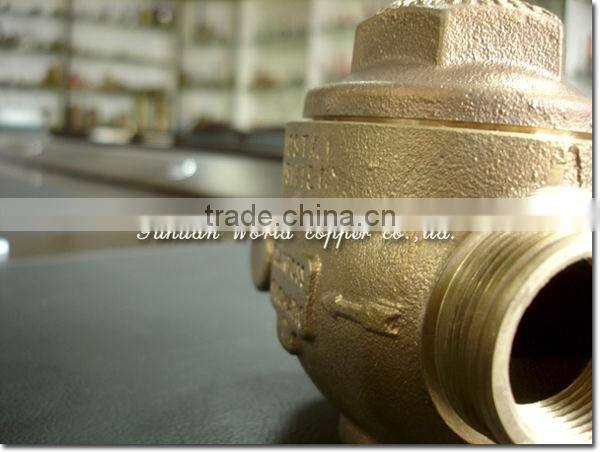

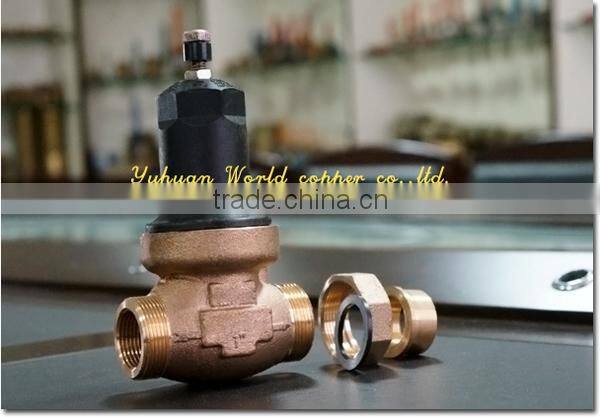

Product's pic:
♦ Advantage |
| •Prompt Quotation •Punctual Delivery •Honest Reliable Prestige And Elegant Design. |
| •Competitive Price •100% leakage test •Strictly & perfect management is garantee for production |
| •Guaranteed Quality •Sincere service •CE approved.ISO9001 Certificate.etc. |
| •Specialized in manufacturing,supplying a wide range of Bronze&Brass Valves For more than 15years |
| •Have rich experience and strong ability to develop new products. |
| •Have ability to design the products based on your requirement. |
| •The important that Im on line now and u will contact me about the products u need at any time. |

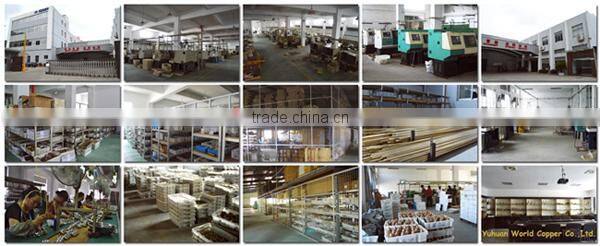

| ♦ Production and inspection step | |||
| 1 | Purchasing the raw material | 10 | PQC inspection |
| 2 | IQC inspection | 11 | Surface treatment |
| 3 | Cutting material | 12 | PQC inspection |
| 4 | PQC inspection | 13 | Assemble parts to full products |
| 5 | Forging parts | 14 | Testing |
| 6 | PQC inspection | 15 | Packing |
| 7 | Sanding or Polishing parts | 16 | OQC inspection |
| 8 | PQC inspection | 17 | Delivering |
| 9 | Machines for processing | 18 | Reorder From Customers |
| ♦ Packaging Detail: | ♦ Delivery Detail: | |||||||
| ♦ International standard Export Packaging: | ♦ 30-45 days after receipt the deposit. | |||||||
| Plastic bag→Inner box→Carton→Pallet. | ||||||||
| ♦ According to Customers' Specific Requirments. | ||||||||
| ♦ Contact Information |
M.B.:86-15958605251 QQ :735734707 Web: /
Tel :86-576-87111617 Skype:yoki.6891 http://world-brass.en.china.cn/
Fax :86-576-87111688
Add:Hexin Industrial Zone,Qinggang,Yuhuan,Zhejiang,PRC.317606
Contact us at any time if have any inquiry!!!
♦ Plz note your Comapny & your name.
♦ Plz let us know exactly what u need along with the item size and quantities required.
