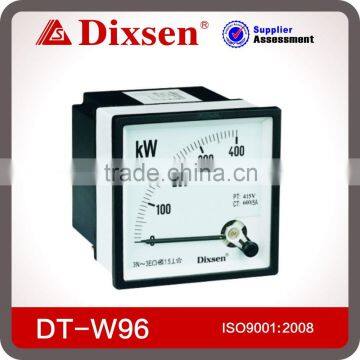

3P power watt meter
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Dixsen | |
| Model Number | DT-W96 | Measuring Current Range | upon request | |
| Measuring Voltage Range | upon request | Accuracy Class | 1.5 | |
| Operating Temperature | -25℃~40℃ | Dimensions | 96*96 |
Product Description
Power meter is a moving-coil meter with a built in measuring transducer.It is destined to measure active or reactive power in AC power networks. The measured power is indicated by a magnetoelectric (moving-coil) measuring system.
| Model | Frame Size (mm) | Mode | Measuring range | Class Index | Case Qty.(Pcs) | Item Code |
| DT-W96 | 96x96 | 1P | Upon request | 1.5 | 60 | 2691000 |
| DT-W96 | 96x96 | 3P3W | Upon request | 1.5 | 60 | 2693000 |
| DT-W96 | 96x96 | 3P4W | Upon request | 1.5 | 36 | 2694000 |
| DT-W72 | 72x72 | 1P | Upon request | 1.5 | 60 | 2671000 |
| DT-W72 | 72x72 | 3P3W | Upon request | 1.5 | 60 | 2673000 |
| DT-W72 | 72x72 | 3P4W | Upon request | 1.5 | 60 | 2674000 |
Active Power Meter
Note: Please mention voltage and watts when ordering. Reactive power meter upon request.
| Frame Size | Dimension(mm) | |||||
| A | B | C | D | E | F | |
| 96x96mm | 96 | 92 | 90 | 5.5 | 65 | 43 |
Dixsen was born in 1992, we are a professional manufacturer focuses on low voltage components like Current and voltage Transformers, Transformers, Meters, MCCBs, MCBs, AC Contactors, Fuse and Bases, Relays and sort of things. We locate in Wenzhou city, Zhejiang province, where is quite close to Shanghai and Ningbo port. A 15000 square meter area is divided into workshop zone and office zone, 430 employees are currently making their great efforts in that area for Dixsen brand.
