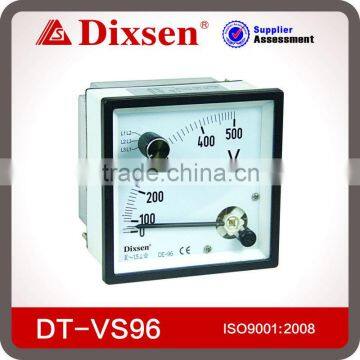

DT-VS72 Change Over Switch AC Voltmeter

Specifications

   The instrument are suitable for measuring AC Voltages in three phase 4 or 3 wire networks by using a change over switch on the fornt side of the instrument.

Feature: With cover on movement (F), without cover on movement(c).

Model: DT-VS96 ,DT-VS72

Technical data:

Movement: Moving-iron movement with oil filled bearings,practically vibration-free oil damping.

Class of accuracy: 1.5.

Frequency range: 50Hz.

3 phase 3 wire Measuring range: 100V, 150V, 200V. 250V, 400V, 500V

3 Position: L1-L2, L1-L3, L2-L3.

3 phase 4 wire Measuring range: 60V/100V, 80V/150V, 100V/200V.

                                                       150V/250V, 250V/400V, 300/500V.

6 Position: L1-L2, L1-L3, L2-L3, L1-N, L2-N, L3-N.

7 Position: L1-L2, L1-L3, L2-L3, L1-N, L2-N, L3-N, OFF.

Heat resistance: Case of non-combustible plastic material.Fastening by means of nuts, absolutely  safe, fast, robust, side-by-side.

Mounting depth: Max 43mm.

   The instrument are suitable for measuring AC Voltages in three phase 4 or 3 wire networks by using a change over switch on the fornt side of the instrument.

Feature: With cover on movement (F), without cover on movement(c).

Model: DT-VS96,VT-VS72.

Technical data:

Movement: Moving-iron movement with oil filled bearings,practically vibration-free oil damping.

Class of accuracy: 1.5.

Frequency range: 50Hz.

3 phase 3 wire Measuring range: 100V, 150V, 200V. 250V, 400V, 500V

3 Position: L1-L2, L1-L3, L2-L3.

3 phase 4 wire Measuring range: 60V/100V, 80V/150V, 100V/200V.

                                                       150V/250V, 250V/400V, 300/500V.

6 Position: L1-L2, L1-L3, L2-L3, L1-N, L2-N, L3-N.

7 Position: L1-L2, L1-L3, L2-L3, L1-N, L2-N, L3-N, OFF.

Heat resistance: Case of non-combustible plastic material.Fastening by means of nuts, absolutely  safe, fast, robust, side-by-side.

Mounting depth: Max 43mm.
