TJ(DRS) Series heat shrinkable tube
- china port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DIXSEN | |
| Model Number | TJ | Type | Insulation Sleeving | |
| Material | Other, polyolefin | Application | Low Voltage | |
| Rated Voltage | 600V | Tensile Strength | ≥15Mpa |
Product Description
Specifications
A.Founded in1980B.CE,ROHS,SGS,UL,KEMA,VDE,TSE,CB
C.ISO9001,14001
D.manufacturer
E. 430 employees,15000 square meter factory

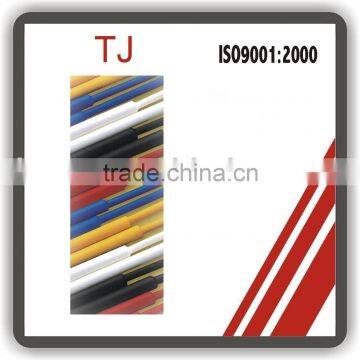

TJ Series heat shrinkable tubing
1.With low shrinking temperature, water-resistant, anticorrosive, better isolation and abrasion
2.Suitable for various electric insulation and bonding of cables and connectors
3.Especially suitable for the prevention of over-heat on temperature-sensitive components
4.Dual wall heat shrinkable tube can be used to protectable bundles wires and metal tubes against water and moisture
5.Material: chemical, cross-linked (by radiation), thermally stabilized flame retarded polyolefin
6.Operating temperature : -55 to 125 degrees
7.Shrinking temperature: before shrinkage at 70 degrees, after shrinkage at 120 degrees or 110 degrees for thin wall
8.Inner adhesive shrink temperature (for Dual Wall only): 60 to 80 degrees
9.Approval: UL224VW-1, C-UL CSA C22.2 OFT
10.Color: black, white ,yellow,blue,etc.
Basic Data | |||||
Item | As supplied | packing m/circle | |||
I.d | thickness | I.d | thickness | ||
TJ-1 | 1.0 | 0.2±0.05 | 0.5 | 0.4±0.05 | 200 |
TJ-1.5 | 1.5 | 0.2±0.05 | 0.75 | 0.4±0.05 | 200 |
TJ-2 | 2.0 | 0.25±0.05 | 1.0 | 0.45±0.1 | 200 |
TJ-2.5 | 2.5 | 0.25±0.05 | 1.25 | 0.45±0.1 | 200 |
TJ-3 | 3.0 | 0.25±0.05 | 1.5 | 0.45±0.1 | 200 |
TJ-3.5 | 3.5 | 0.25±0.05 | 1.75 | 0.45±0.1 | 200 |
TJ-4 | 4.0 | 0.25±0.05 | 2.0 | 0.45±0.1 | 100 |
TJ-5 | 5.0 | 0.35±0.05 | 2.5 | 0.55±0.1 | 100 |
TJ-6 | 6.0 | 0.35±0.05 | 3.0 | 0.55±0.1 | 100 |
TJ-7 | 7.0 | 0.35±0.05 | 3.5 | 0.55±0.1 | 100 |
TJ-8 | 8.0 | 0.35±0.05 | 4.0 | 0.55±0.1 | 100 |
TJ-9 | 9.0 | 0.35±0.05 | 4.5 | 0.55±0.1 | 100 |
TJ-10 | 10.0 | 0.35±0.05 | 5.0 | 0.60±0.1 | 100 |
TJ-11 | 11.0 | 0.35±0.05 | 5.5 | 0.60±0.1 | 100 |
TJ-12 | 12.0 | 0.35±0.1 | 6.0 | 0.70±0.1 | 100 |
TJ-13 | 13.0 | 0.35±0.1 | 6.5 | 0.70±0.1 | 100 |
TJ-14 | 14.0 | 0.35±0.1 | 7.0 | 0.70±0.1 | 100 |
TJ-15 | 15.0 | 0.35±0.1 | 7.5 | 0.70±0.1 | 100 |
TJ-16 | 16.0 | 0.35±0.1 | 8.0 | 0.70±0.1 | 100 |
TJ-18 | 18.0 | 0.4±0.1 | 9.0 | 0.90±0.1 | 50 |
TJ-20 | 20.0 | 0.5±0.1 | 10.0 | 0.90±0.1 | 50 |
TJ-22 | 22.0 | 0.5±0.1 | 11.0 | 0.90±0.1 | 50 |
TJ-25 | 25.0 | 0.5±0.1 | 12.5 | 0.90±0.1 | 50 |
TJ-28 | 28.0 | 0.5±0.1 | 14.0 | 1.00±0.2 | 50 |
TJ-30 | 30.0 | 0.5±0.1 | 15.0 | 1.00±0.2 | 25 |
TJ-35 | 35.0 | 0.5±0.1 | 17.5 | 1.00±0.2 | 25 |
TJ-40 | 40.0 | 0.5±0.1 | 20.0 | 1.00±0.2 | 25 |
TJ-50 | 50.0 | 0.5±0.1 | 25.0 | 1.00±0.2 | 25 |
TJ-60 | 60.0 | 0.6±0.1 | 30.0 | 1.20±0.2 | 25 |
TJ-70 | 70.0 | 0.6±0.1 | 35.0 | 1.20±0.2 | 25 |
TJ-80 | 80.0 | 0.6±0.1 | 40.0 | 1.20±0.2 | 25 |
TJ-90 | 90.0 | 0.6±0.1 | 45.0 | 1.30±0.2 | 25 |
TJ-100 | 100.0 | 0.7±0.1 | 50.0 | 1.30±0.2 | 25 |
TJ-120 | 120.0 | 0.7±0.1 | 60.0 | 1.40±0.2 | 25 |
TJ-140 | 140.0 | 0.8±0.1 | 70.0 | 1.40±0.2 | 25 |
TJ-150 | 150.0 | 0.8±0.1 | 75.0 | 1.50±0.2 | 25 |
TJ-200 | 200.0 | 0.9±0.1 | 100.0 | 1.50±0.2 | 25 |
...
