Home > Products > Electrical Accessories > AC Cooler Fan 120X120X38 115V,230V,380V

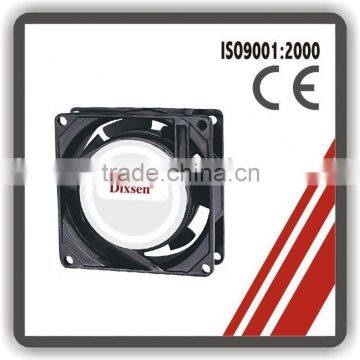

AC Cooler Fan 120X120X38 115V,230V,380V
- CHINA PORT
- T/T Credit Card
You May Like
-
Axial Fan Motor 120X120X38 115V,230V,380V
-
AC Axial Fan 120X120X38 115V,230V,380V
-
40X40X10 Brushless DC Fan( DC Motor Fan, Brushless Fan,Cooling Fan,Cooler,Draught fan,Blower Fan)
-
40X40X10 Brushless DC Fan( DC Fan, Brushless Fan,cooling Fan,cooler,Blower Fan)
-
80x80x25 Brushless DC Fan( DC Fan, Brushless Fan,cooling Fan,cooler,Blower Fan)
-
Brushless DC Fan( DC Fan, Brushless Fan,cooling Fan,cooler,Blower Fan)
Product Details
| Electric Current Type | AC | Blade Material | Plastic | |
| Mounting | Other, SCREW | Place of Origin | Zhejiang, China | |
| Brand Name | DIXSEN | Model Number | RC | |
| Power | 20,25 | Voltage | 115,230,380V | |
| Air Volume | 108CFM/3.05CMM,ETC | Speed | 2500,2900 | |
| Certification | CE |
Product Description
Specifications
A.Founded in1980B.CE,ROHS,SGS,UL,KEMA,VDE,TSE,CB
C.ISO9001,14001
D.manufacturer
E. 430 employees,15000 square meter factory
AC Axial Fan(AC Fan, Axial AC Fan, Axial Fan, Fan Motor,AC Cooler Fan,AC Cooling Fan,Ventilation Fan)(80X80X25,80X80X38,92X92X25,110X110X25,120X120X25,120X120X38,135X135X38,150X150X51,150X170X52,172X51,180X180X60,200X200X60,220X60)
Model: RC120-38
Size:120x120x38mm
Voltage: AC ,110V / 220V / 380V
Frequency: 50Hz / 60Hz
Weight:515g
Electric motor: Shaded pole type AC electric motor design
Frame: High quality aluminum alloy, anti-corrosive and moisture proof structure
Impeller: UL94V-0 70% PBT+30%FRP
Bearing: Ball Bearing or Sleeve Bearing
Insulation: Class B
Insulation Impedance: The case adds 500V DC to the coils, insulation impedance 100MΩ higher
Dielectric strength: 0.5mA 1500V AC /min
Safety protection: Impedance protection
Operating temperature: -10~70
Storage temperature: -40~70
Model | Dimension mm | Voltage V AC Frequency Hz | Current AMP | Power Watts | Speed RPM | Air Flow CFM | Pressure mm H2O | Noise dBA | ||
RC120-38L-115 | 120x120x38 | 115 | 50 | 0.25 | 25 | 2500 | 87 | 0.23 | 46.5 |
|
RC120-38M-115 | 60 | 0.23 | 20 | 2900 | 108 | 0.28 | 52.6 |
| ||
RC120-38L-230 | 230 | 50 | 0.14 | 25 | 2500 | 87 | 0.23 | 46.5 |
| |
RC120-38M-230 | 60 | 0.12 | 20 | 2900 | 108 | 0.28 | 52.6 |
| ||
RC120-38L-380 | 380 | 50 | 0.14 | 25 | 2500 | 87 | 0.23 | 46.5 |
| |
RC120-38M-380 | 60 | 0.12 | 20 | 2900 | 108 | 0.28 | 52.6 |
| ||
