Assembly Tightness,PS400A-II Nozzle Tester
- Qingdao
- T/T Credit Card
You May Like
-
Pressure Gauge Accuracy Rating 0.4,PS400A-II Nozzle Tester
-
HY-1 Diesel Nozzle Tester for Diameter of Pressure Gauge 150mm
-
HY-PS400A Injector Nozzle Tester Pressure Gauge Range: 0~60
-
(PS400A-II ) Fuel Injector Tester,test Tool(HAIYU)needle Valve Seals
-
Manuel Test Machine , Injector Tester
-
VP37 Fuel Pump Tester(Test Bosch VP37,Zexel COVEC-F Electric Control Distribution Pumps)
Product Details
| Place of Origin | Shandong, China | Brand Name | Haiyu | |
| Model Number | PS400A-II | Power | Electronic | |
| Usage | Auto Testing Machine |
wood package
Product Description
Specifications
1.injecting pressure2.atomizing quality
3.injecting angle
4.needle valve seals
weight:5kg

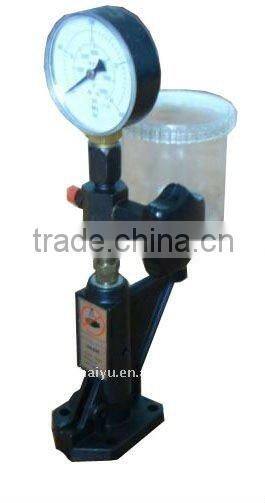

PS400A-II Nozzle Tester
High testing accuracy
60Mpa
Main technical parameters
1. diameter of pressure gauge 150mm
2. pressure gauge range 0∼60MPa
3. pressure gauge accuracy rating 0.4
4. largest tested pressure 60MPa
5. capacity of fuel tank 1.6L
6. overall dimension (L×W×H ) 250mm×150mm×480mm
7. net weight 5Kg
8. High testing accuracy
S60H Nozzle tester (testers for test nozzle and holder assemblies and engine nozzle and holder assemblies, informally referred to as nozzle testers) can be used to perform the following tests on injection nozzles of sizes P, R, S and T with the appro-priate nozzle holders:
A Opening pressure
B Jet Shape
C Tightness of fitting
D Assembly tightness
E Chatter behavior
Fill oil tank at least halfway with test oil
complying with ISO 9001.
Unscrew oil tank slightly.
Operate manual lever unit the oil exits at the pressure outlet with no bubbles.
Tighten oil tank again by hand.
