PQ-400 Double Spring Nozzle Tester with rate of oil pressure and air pressure is 100:1
- 20 Set / Sets per Month
- Qingdao
- T/T Credit Card PayPal
You May Like
-
an electrical motor ,CRI700 Common Rail Electronic Injector Tester
-
Engine Control Unit,CRI700 Common Rail Injector Tester
-
HY-PS400A-II Nozzle Tester,net weight 5Kg
-
HY-PS400A-II Nozzle Tester,diameter of pressure gauge 150mm
-
CRS3 Common Rail Tester,Simulate signals to drive a CR pump and one CR injector
-
HY-1 Diesel Nozzle Tester for Mechanical Injector
Product Details
Place of Origin | Shandong, China | Brand Name | Haiyu | |
Model Number | PQ-400 | Power | Electronic | |
Usage | Auto Testing Machine |
wood package
Product Description
Specifications
1.HY-PQ400 double spring injector and nozzle tester2.high reliable
3.easy operation
4.accurate measure

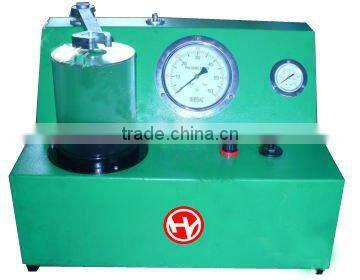

PQ-400 Double Spring Nozzle Tester
Gold product!!!
Professional tester to test normal injector and diesel double springs injectors !!!
ISO 9001:2008 Certificate and CE Certificate!!
Functions and Advantage:
1.Test and calibrate normal injector and diesel double springs injectors.
2.Equipment with a manometric gauge for internal pressure regulation
3. Digital display permits to calibrate the injector opening pressure
4. One shot and continuous spraying test
5.High accuracy with competitive price.
6.Easy to operate and maintain.
Opeartion:
Main Button:
A: Internal pressure meter
B: Air supply meter
C: Air supply throttle
If the throttle whirls in clockwise, quantity of air input will be less, and oil input is less as well. Inverse, the input oil will increase.
D: Governor valve
If the governor valve circumgyrate to the bottom, rate of oil pressure and air pressure is 100:1. For example, when air pressure 7kg, the oil pressure will be 700kg.
E: Air switch valve
The air valve is opened by pulling, and closed by pushing
