manufacture and sell different types of cables

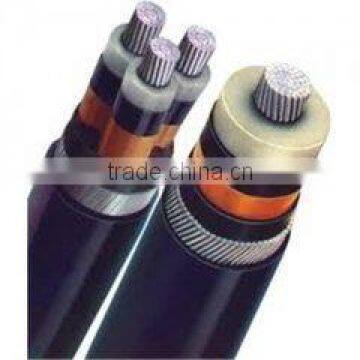

copper or aluminum conductor XLPE insulated PVC sheathed  power wire cable

Our factory is available to offer free samples for testing.

Brief company introduction:

Sichuan Motian Cable Co., Ltd. was founded in 2005, located in north area of  Modern Industrial Zone, Chengdu. The company has obtained ISO9001:2008, CCC certificate and also "Sichuan famous brand", famous and excellent products in Sichuan etc.

Our company is specialized in various cables and wires with low, medium and high voltage up to 35KV, mainly including: XLPE insulated power cable, rare earth high speed rail aluminum conductor power cable, aerial insulated cable,mining cable, LSZH cable and sheathed or non-sheathed wires. The products can be widely used in the areas of power station, metallurgy,mines,petrochemical,machinery,building, communication,etc.

We have professional R&D department and have obtained patents for such products as water proof power cable, fire resistant & insulated shielded cable, special anti-corrosion cable,marine flexible cable with heat resistant, moisture resistant and oil resistant properties, anti-corrosion control cable with heat resistant properties, overhead wires & cables, aerial wires and cables, high voltage flexible cable for transformer, etc.

1 Information

 a, Number of cores:

1,  2,  3,   3+1,   3+2,    3+3,  4,    4+1,    4+2,   5 and so on.

b, Construction:

Conductor: Solid or stranded copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)

c, Nominal Section
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800

d, Features

 XLPE  insulated power cable do not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and enviromental stress resistance. Its structure is simple. The long period operating temperature is +90 °C. It is conveninet to use and can be laid with no restriction of different level.

XLPE insulated steel wire armoured power cable: XLPE/PVC insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting antichemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.

Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide, silane and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke nonhalogented and three classes of

A, B, C.

 2 Standard:

IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.

 3 The Rated Voltage(kv):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

 4 Application:

1)These cables are most suitable for direct burial or for installation on trays or ducts,  Where there is
a risk of mechanical damage, armoured cables should be used.

2) For laying in ground along route with large difference of level able to bear external mechanical forces.

2.Technical specification:

A:Rated voltage: up to0.6/1KV

B:Long-term allowable operating temperature of cable conductor should not over 70/90/125 celcius.

C:Burning smoke density comply with GB/T 17651.2-1998 (IEC1043) standards:light transmittance>60%.

D:Halogen acid content test company with GB/T 17650-1998 (IEC754-2) standards:PH value>4.3,conductor<10us/mm.

E:Flame retardant property comply with GB/T 12666-1990 standards.

F:Toxicity index:<3

G:Products basic performance meet requirements of corresponding product.

3.Performance requirements characteristics:

A:No halogen,no heavy metal,such as plumbum,cadmium,non-pollution.

B:Safety,flame-retardant,when burned,less harmful gases and smoke less.

C:Renewable utilization,not harm the environment when discorded, no dioxin and other carcinogenic substance diffusion.

D:Not change the product of the physical properties and use characteritics.

4.Eco-friendly and combustion performance requirements:

A:Flame-retardant (single vertical burning) <60S.

B:Transmittance 60% min.

C:Sheathed material HCL5mg/g max.

D:Jackect material combustion gas PH value 4.3 min.

E:Jackect material combustion gas conductivity 10 us/mm max.

Parameters:

Factory view:

QC equipment:

Application of aerial cable:

Certificate:

Company name:Sichuan Motian Cable Co., Ltd

Address;No.248,Gangbei 2nd Road,Modern Industrial Park,Hongguang Town,Pixian County,Chengdu City,Sichuan Province,China

website:

skype:fiona,.123

Tele:+86 15108225495

Welcome to visit  and inspect our factory.
