Flexible or Rigid	Flexible		Brand Name	Tanso
Place of Origin	Hebei, China		Model Number	TS2Z

Product Description

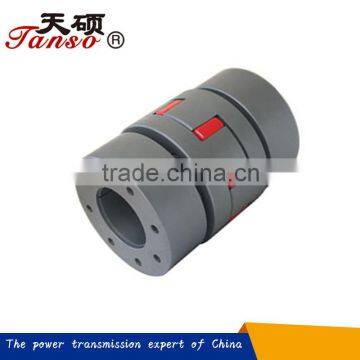

This is flexible coupling .

Product Feature

- Zero backlash coupling- Excellent durability and rigidity against high torsion- Maintenance and repair are unnecessary and lubrication is not required- Elastic spider reduces impact of pit load- Identical regular and reverse rotational characteristics- Resistance against oil and insulation against electricity- Operational temperature: -20°C ~ 70°C

Product Specification / Models

- Electric motor- Position controling - positioning- Robot system- Direct drive of boring and grinding machine- Machining center (machine tool)- Medical equipment- Servo Motor- X-Y and X-Y-Z axle driving- Deceleration Moto

Model	Φ d1Φd2 Bore diameter	ΦD	L	W
Model	Φ d1Φd2 Bore diameter	ΦD	L	W	L1	W	M	Wrench Torque N·m
TS2Z-30	8 9.525 10 12 14	30	50	13	18.5	13	M3(4)	1.3
TS2Z-40	10 12 14 16 19 20	40	66	16	25	16	M3(4)	2.7
TS2Z-55	14 16 19 24 25 28	55	78	18	30	18	M3(4)	6.0
TS2Z-65	19 20 24 28 30 35 38	65	90	20	35	20	M3(4)	6.0
TS2Z-80	24 28 30 35 38 40 45	80	114	24	45	24	M3(4)	10.0
TS2Z-95	30 35 38 40 45 50	95	126	26	50	26	M3(4)	35
TS2Z-95	35 40 45 50 55 60	105	140	28	56	28	M3(4)	35

Model	Rated Torque (N·m)	Max.Torque (N·m)	Max.Rotational Frequency (rpm)	Moment of inertia kg·m2	Static Torsioral Stiffness N m/rad	Parallel misalignment mm	Angular misalignment	Axial misalignment mm	Mass g
TS2Z-30	7.4	14.8	20000	87×10^-4	510	0.02	1	+0.6 0	50
TS2Z-40	9.5	19.0	15000	112×10^-3	550	0.02	1	+0.8 0	120
TS2Z-55	34	68	13000	4.5×10^-3	1510	0.02	1	+0.8 0	280
TS2Z-65	95	190	10500	9.1×10^-3	2800	0.02	1	+0.8 0	450
TS2Z-80	135	270	8600	1.9×10^-3	3600	0.02	1	+1.0 0	960
TS2Z-95	230	460	7500	2.2×10^-2	4700	0.02	1	+1.0 0	2310
TS2Z-105	380	760	6000	3.3×10^-2	5800	0.02	1	+1.0 0	3090
