Precision setscrew curved jaw coupling
- TIANJIN
- T/T L/C D/P D/A
You May Like
Product Details
| Structure | Jaw / Spider | Flexible or Rigid | Flexible | |
| Standard or Nonstandard | Standard | Material | Aluminium | |
| Brand Name | Tanso | Place of Origin | Hebei, China | |
| Model Number | TS2C |
Product Description

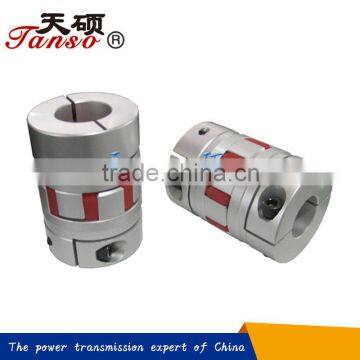

curved jaw coupling
The Jaw Type couplings from Tanso are offered in the industry’s largest variety of stock bore/keyway combinations. These couplings require no lubrication and provide highly reliable service for light, medium, and heavy duty electrical motor and internal combustion power transmission applications.
Features of TS2C curved jaw coupling:
1.Coupling assembled by pressing a polyrethane sleeve into hubs on both sides
2.Can absorb vibration,parallel,angular and axial misalignments
3.Resistance to oil and electrical insulation
4.Identical clockwise and anticlockwise ratational charateristics
5.Two different hardness sleeves are avaible
6.Clamp type
Cangzhou Tanso Coupling Co., Ltd.
Features:
1.Coupling assembled by pressing a polyurethane sleeve into hubs on both sides.
2.Could absorb the vibration parallel ,angular misalignments and shaft end-play.
3. Resistance to oil and electrical insulation.
4.Identical clockwise and anticlockwise rotational characteristics.
5.Three different hardness sleeves are available.
6.Clamp type.
Model | Inner bore | D (mm) | L (mm) | Nominal Torque (N.m) | The Max of Torque (N.m) | |
dmin | dmax | |||||
TS2C-25 | 4 | 12 | 25 | 34 | 5.0 | 10.0 |
TS2C-30 | 6 | 16 | 30 | 35 | 7.4 | 14.8 |
TS2C-40 | 10 | 24 | 40 | 66 | 9.5 | 19.0 |
TS2C-55 | 12 | 28 | 55 | 78 | 34 | 68 |
TS2C-65 | 14 | 38 | 65 | 90 | 95 | 190 |
TS2C-80 | 24 | 45 | 80 | 114 | 135 | 270 |
TS2C-95 | 30 | 55 | 95 | 126 | 230 | 460 |
TS2C-105 | 35 | 60 | 105 | 140 | 380 | 760 |
Model | Allowable speed (rpm) | Radial Misalignment(m.m) | Angular Misalignment(°) | Axle Misalignment(mm) | ||
TS2C-25 | 17000 | 0.02 | 1.0 | +0.60 | ||
TS2C-30 | 12000 | 0.02 | 1.0 | +0.60 | ||
TS2C-40 | 10000 | 0.02 | 1.0 | +0.80 | ||
TS2C-55 | 8000 | 0.02 | 1.0 | +0.80 | ||
TS2C-65 | 6000 | 0.02 | 1.0 | +0.80 | ||
TS2C-80 | 4600 | 0.02 | 1.0 | +1.00 | ||
TS2C-95 | 3800 | 0.02 | 1.0 | +1.00 | ||
TS2C-105 | 3400 | 0.02 | 1.0 | +1.00 | ||
