Galvanized Metal Tile Making Machine Low Price

Our company,Zhejiang Willing Technology Co., Ltd is a professional manufacturer engaged in equipments of roofing and wall panel used for constructions.  Since its establishment for more than 10 years, we are committed to research, develop and innovate new products continuously, and take the leadership position in the industry with high technological content and engineering level.

1.Technical parameters:

2. Components of machine:

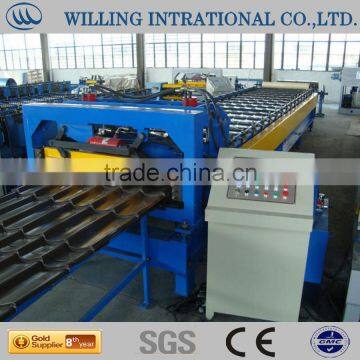

roof tile making machine

1.Roller Material: high grade No.45 forged steel, Coating with hard chrome.
2.Active Shaft Material: high grade No.45 carbon wrought steel, improved the integrated mechanic feature of the shaft.
3.Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.
4.Other Elements: from famous suppliers in China.
5.Cutter Blade: Cr12 mould steel with quenched treatment.

3. Process flow:

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

4.Details of the machine and wall panel

Products show

Details of the machine

Decoiler

1> Inner diameter:450-550mm

2>Outer diameter: 1500mm

3>Coil width:1250m

4>capacity: 5T

Forming device

Hydraulic cutting

1>automatic forming, high level safety factor.

2>easy to control, hydraulic cutting after forming

Control system (touch screen and text screen for choice)
1>Screen: mitsubishi touch screen
2>PLC:  schneider
3>automatic length and quantity measurement
4>cutting to length and stop when required quantity is achieved

wall panel model

at buyer's requirement
