Chinese manufacturers steel hydraulic uncoiler

Hangzhou Willing International Co., Ltd is a professional manufacturing & exporting company engaged in the field of steel structure, whose products are 100% for export , and well sold in American ,Europe ,Australia , Africa ,Middle East ,Southeast Asia , and etc . Hangzhou Willing International Co. , Ltd holds two factories, one mainly develops and produces steel roll forming machines and the other mainly produces the construction material for steel structure.

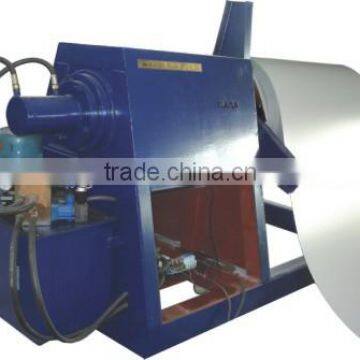

Chinese manufacturers steel hydraulic uncoiler

Components:

The uncoiler consists of the lifting dolly, uncoiler with pressing arm, frame with lead rail, and hydraulic system. The lifting dolly can be lifted, move on the lead rail, carry the coil to the uncoiler, the leafs of the uncoiler expanse, the coil be fixed on the uncoiler, main axis of the uncoiler rotate, the coil sheet comes out. After the coil sheet fed into the roll forming machine, the coil sheet will be pulled back to minimize the pendant.

Function:

The lifting dolly can be lifted, move on the lead rail, carry the coil to the uncoiler, the leafs of the uncoiler expanse, the coil be fixed on the uncoiler, main axis of the uncoiler rotates ,the coil sheet comes out. After the coil sheet fed into the roll forming machine, the coil sheet will be pulled back to minimize the pendant.

Parameters:

1. For lifting dolly: Capacity:max.10tons Speed:6m/min Lifting:max.550mm  Moving:max.3000mm

2. For uncoiler: Capacity: max. 10tons  Inner Dia.: About 508mm;610mm(gasket is required) Width:max.1500mm  Center Adjust:max.250mm

3. For hydraulic: Max. Hydraulic Pressure: 16Mpa Moto Power: 10.5KW  Air pressure: 0.9Mpa







   Work Flow:

    Fix the coil to the uncoiler→fix coil sheet to lifting dolly→lifting dolly moves to uncoiler→lifting dolly lifts to the same center with uncoiler→lifting dolly moves more closely to uncoiler→expanse(coil moves to the uncoiler) →lifting dolly returns axis of uncoiler rotate(coil sheet comes out).
