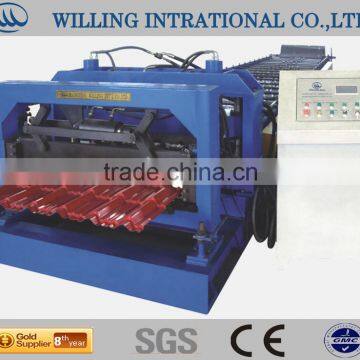

Automatic Corrugated Metal Roof Tile Making Machine
- 20 Set / Sets per Month
- Shanghai/Ningbo
- T/T D/P D/A
You May Like
-
roof roll forming machine color roof
-
mrtal roof tile roll forming machine
-
Glazed Tile Sheet Forming machine\ roof tile making machine
-
Steel Glazed Roof Tile Roll Forming Machine metal sheet making machine
-
Galvanized metal tile making machine low price
-
Galvanized Automatic Color Steel Roof Tiles Making Machines
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Glaze Steel | Use | Roof | |
| Production Capacity | 8-12m/min | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING | Model Number | at buyer's requirement | |
| Power(W) | 5.5kw | Voltage | 380V 3 phase 60Hz or at buyer's requirement | |
| Dimension(L*W*H) | 8m*1.5m*1.4m | Weight | about 8000kg | |
| Certification | CE, ISO9001:2008 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Our company,Zhejiang Willing Technology Co., Ltd is a professional manufacturer engaged in equipments of roofing and wall panel used for constructions. Since its establishment for more than 10 years, we are committed to research, develop and innovate new products continuously, and take the leadership position in the industry with high technological content and engineering level.
1.Technical parameters:
Product Name | Steel Tile Roll Forming Machine | |
Model | WLTM | |
Material | Type | Pre-painted steel sheet |
Thickness(mm) | 0.3-0.7 | |
Yield stress(Mpa) | 230-300 | |
Max. Forming speed(m/min) | 2-3 | |
Roller material | 45# Steel with chrome treatment | |
Roller driven type | Chain transmission | |
Controller | PLC | |
Operation | Touch screen and button | |
Hydraulic system pressure (Mpa) | 12 | |
Hydraulic station motor power | 5.5 | |
Main motor power (KW) | 5.5 | |
Total power (KW) | 11 | |
Total weight (Kg) | About 8000 | |
2. Components of machine:
roof tile making machine
1.Roller Material: high grade No.45 forged steel, Coating with hard chrome.
2.Active Shaft Material: high grade No.45 carbon wrought steel, improved the integrated mechanic feature of the shaft.
3.Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.
4.Other Elements: from famous suppliers in China.
5.Cutter Blade: Cr12 mould steel with quenched treatment.
3. Process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table
4.Details of the machine and wall panel
Products show
Details of the machine
Decoiler
1> Inner diameter:450-550mm
2>Outer diameter: 1500mm
3>Coil width:1250m
4>capacity: 5T
Forming device
Hydraulic cutting
1>automatic forming, high level safety factor.
2>easy to control, hydraulic cutting after forming
Control system (touch screen and text screen for choice)
1>Screen: mitsubishi touch screen
2>PLC: schneider
3>automatic length and quantity measurement
4>cutting to length and stop when required quantity is achieved
wall panel model
at buyer's requirement
1.We provide the technical support for whole life of our machines.
2.If buyers need the technician to go abroad ,we will arrange the technician,but the buyers should take all the cost.
1, Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We
need your machines running in order to keep your business running.
2, Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly.
3. Q: How does your factory do regarding quality control?
A: Quality is priority.WILLING People always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4, Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components
5, Q: Can you do a business plan for a start-up company?
A: On request, at a fee.
6, Q: Do you have a warranty on your machines?
A: 12 month warranty from time of loading.
7, Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings.
