Roof Tile Roll Former

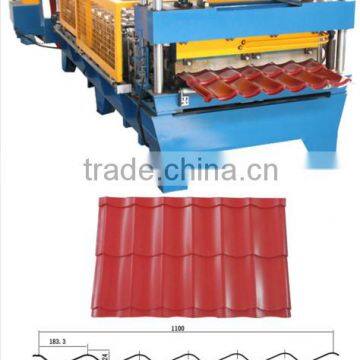

glazed tile roll forming machine

The archaistic tile sheet is rolled and pressed by the WLTM series modular tile sheet roll forming machine, it has many features, such as good appearance, primitive simplicity and elegance, unique style, noblest grade, and etc.

It is widely used in garden style factories, scenic resorts, pavilions, hotels, villas, exhibition halls, country clubs, and so on for outdoor decorations.

WLTM series modular tile sheet roll forming machine consists of uncoiler and its base, infeed guides, fixed position driven forming stations, pressing die, shearing device, hydraulic station, PLC control console and so on.

Our company has dozens of profile models for this series roll forming machine, such as WLTM25-183-1100, WLTM28-207-828, and etc.

We can design different kinds of profile and fittings for machine, as per customers' requirements.

glazed tile roll forming machine

  1. Atomatically

  2. Mking and designingl kinds of roll forming machine.
  3. CE, ISO, SGS , BV report
  4.Top quality standard

  6.Life long professional service

  7.Used machines

glazed tile roll forming machine

1.Technical parameter:

2. Components of machine:

   1.Roller Material: high grade No.45 forged steel, Coating with hard chrome.

   2.Active Shaft Material: high grade No.45 carbon wrought steel, improved the integrated

      mechanic feature of the shaft.

   3.Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.

   4.Other Elements: from famous suppliers in China.

   5.Cutter Blade: Cr12 mould steel with quenched treatment.

3. Profile drawing:

    Finished products of this colored steel tile roll forming machine looks beautiful, elegant and

    noble.

    They are widely used as the roof of garden, factory, hotel, exhibition center and villa, etc.

4. Process flow:

    Uncoiling -- Sheet Guiding -- Roll Forming -- Pressing --Measuring Length&Shearing --

    Sheet to Support Table

5. Details of the machine and panel

6. Feature of our machines:

   1. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as

       the material plate.

   2. Controlling by computer, PLC display, operation is easy, running is steady and reliable,

       endurable, maintenance-free.

   3. We can make and design all kinds of tile forming machine according to customer's request.

1. Our company

2. Production capacity

    We do have a big production capacity

3. The quality control

    One of our principles: we will not give customer not perfect products,absolutely.

4. Work details

5. Designed and developed

   We do have the specialized design team.

6. Export market

    Main Markets:South Asia,Southeast Asia,Africa,Central America,South America and so on.

7.  Certificate of the company

     We pursue perfectly, because of our hard work, we have obtained many honors.

      For us , nothings is impossible to your willing heart.

8.  Engineering samples
