metal steel press brake machine for bending steel corrugated roof panel press brake

FOB Price

USD $15,000 - $16,500 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Shanghai or Ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	WILLING	Model Number	as coustomer require
Machine Type	Beading Machine	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Aluminum	Power	Hydraulic
Automation	Automatic	Extra Services	Cut To Length
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Please take few minutes to have a look in detail as following. Thank you!

Product Description

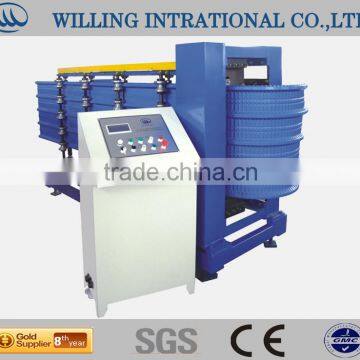

Steel sheet curving forming machine

Product Description

I. Introduction

This machine is mainly used in the production of pressing & bending sheets. This equipment is made up of five main parts: guiding , transmission, pressing&bending, hydraulic station, control station.

There are two ways in pressing&bending of the products: automatic and manual. The automatic way is used is mass production after the length of the sheets is determined. The manual way is only used in testing or feed the first sheet of each new sheet.

Before the operation of the pressing&bending system, you must check the oil tank. Hydraulic oil level must reach to the upper line, start the oil pump and also test the movement of the equipment to be normal.

material: G.I/A.L or colored armor plate
Equipment operation	Automatically
Voltage	AC380/50/60Hz or at buyer's request
Thickness of sheet(mm)	0.4-0.8
Material width(mm)	1000/1250
Formed with(mm)	Upper layer:L1085 Lower layer:C21
Productivity	0-15m/min
Producing capability	3500 m2/8hs
Diameter of shaft	70mm
Dimension of main structure(mm)	7000x1800x1500
Material of rollers	45# steel with heat treatment and surface is being hard chrome
Weight	3000kg
Total power(kw)	7kw
Driven system	Single
Power of hydraulic system	4KW
Power of main molding core	4kw(cycloidal planetary gear speed reducer)

Processing flow

Manual Uncoiler — Entry Beach — Roll Forming Machine — Automatic Shearing Mechanism —

Computer Control Cabinet —Run-out Tables

Galvanized Steel Roof Ridge Cap MakingMachine
