Higher Producing Efficiency Simple Cutting Machine
- ShangHai NingBo
- T/T
You May Like
Product Details
| Condition | New | Type | Tile Cutting Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 20m/min | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING INT'L | Model Number | WLFM | |
| Power(W) | 5KW | Voltage | 320V | |
| Dimension(L*W*H) | 2000mm * 1400mm * 1500mm | Weight | About 1000 Kg | |
| Certification | CE ISO9001:2008, GMC, Soncap | Warranty | 12 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Simple Cutting Machine2.CE&ISO
3.Excellent quality and Reasonable price
Higher Producing Efficiency Simple Cutting Machine
Cut to Length machine for steel strips are made of premium quality parts and components.
Product Name | Cut to Length machine | |
Material | Type | steel coils |
| Thickness(mm) | 0.25mm~0.8mm; |
| Yield stress(Mpa) | 235 |
Controller | PLC | |
Operation | Touch screen and button | |
Coil width | 100-1250mm | |
Coil inner dia | 508-610mm | |
Type of cutting | length-set cutting | |
Total power (KW) | 5.5 | |
Total weight (Kg) | 5000 | |
Material of cutter balde | Cr12 mould steel with quench treatment | |
Roller driven type | Chain transmission | |
Active shaft material | High grade No.45 carbon wrought steel | |

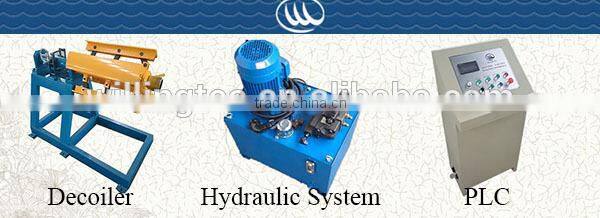

Machine Components
| 5 tons hydraulic un-coiler | 1 |
| Guiding equipment | 1 |
| leveling system | 1 |
| Cutting equipment | 1 |
| Hdraulic stations | 2 |
| PLC control panel | 1 |
| Support tables | 2 |
| Spare parts | 1 wooden tooling box |

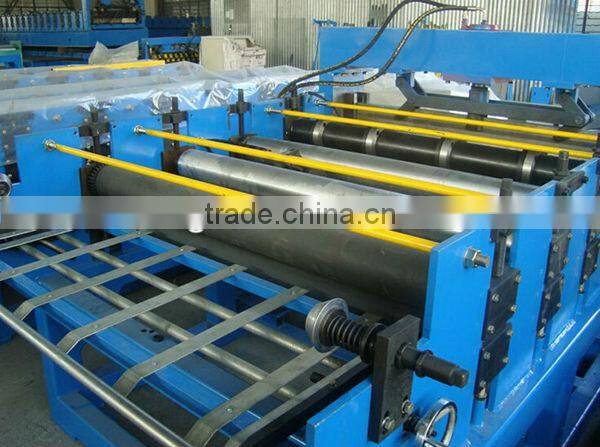

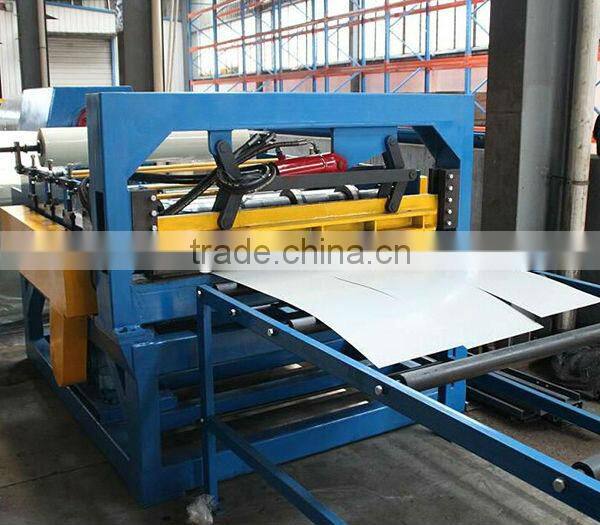

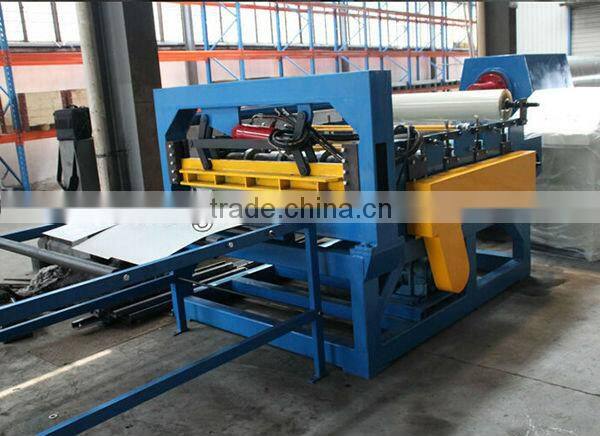

Detail Picture
Manufacturing Process&Packaging
Higher Producing Efficiency Simple Cutting Machine
1. Rollers are put on antirust oil and packed by bubble wraps; some other electric parts are packed by bubble wraps as well;
2. The oil hose and electric wires are marked, and easy to be connected when used;
3. in container loading, sea-worthy, well fixed by wire rope, wooden block and nails.
1. In correct operation & maintaining, one year guarantee for the machine after leaving our factory.
2. If installation is needed, we will dispatch our technician to your company to assist install the machine freely, you need to pay for the roundtrip air ticket and the local accommodation.
About WILLIN
To be best partner in your great business,WILLIN will supply with the best quality product, best favourable price and best service for all world market. We have many kinds of machines,such as trapezoidal roll forming machine, corrugated roll forming machine, ceiling roll forming machine,glazed tile roll forming machine,CZ purlin roll forming machine etc.
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We
need your machines running in order to keep your business running.
2), Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3), Q: How does your factory do regarding quality control?
A: Quality is priority. WILLIN People always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4), Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components
5). Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. If you check with WILLING, you will see that we have never got any complaint from our customers.
