Home > Products > Slitting & Cutting Machine > Mini Simple Steel Coil Slitting Machine

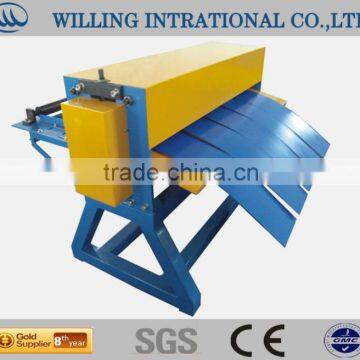

Mini Simple Steel Coil Slitting Machine
- 30 Set / Sets per Month
- shanghai/ningbo
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING | Model Number | at buyer's requirement | |
| Voltage | 3KW | Dimension(L*W*H) | 1700mm*1300mm*1200mm( | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1 Hydraulic conical uncoiler system2 Roll orbit table
3 Slitting host machine
4 Hydraulic machine bridge
Steel Coil Slitting Machine
slitting line system
1 Hydraulic conical uncoiler system
2 Roll orbit table
3 Slitting host machine
4 Hydraulic machine bridge
5Tension Pad and pre-Separator
6 Hydraulic Recoiler and unloading coil car
Technical parameters:
Materials | Cold rolled steel coils / Color-coated steel coils / Pre-coated steel oils |
Thickness | 0.25--1.0mm |
Width | Max 100--1250mm |
Line speed | Max 20m/min |
Machine Size | 1700mm × 1300mm × 1200mm (Length × Width × Height |
No.of Slitting | Max 9 slits |
Cutting Accuracy | ±0.02mm |
Standard equipments of machine
5 tons hydraulic un-coiler | 1 |
Guiding equipment | 1 |
Slitting equipment | 1 |
Cutting equipment | 1 |
Hdraulic stations | 2 |
PLC control panel | 1 |
Support tables | 2 |
Spare parts | 1 wooden tooling box |
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
One year warranty
After-sales Service Provided Engineers available to servicemachinery overseas
