Aluminum Cutting Machine
- Shanghai or Ningbo
- T/T
You May Like
-
Higher Producing Efficiency Automatic Cutting Machinery
-
Higher Producing Efficiency Steel Strip Cutting Machine
-
Higher Producing Efficiency Simple Cutting Machine
-
Higher Producing Efficiency Steel Coil Cutting Machine
-
Perfect Panel Automatic Slitting Equipment
-
Higher Producing Efficiency Used Slitting Machine
Product Details
| Place of Origin | Zhejiang, China | Brand Name | WILLING | |
| Model Number | WLYX41-203-406 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
slitting machine1. make as your requirement.
petitive price
3.good after-sale service
simple slitting machine
Technical parameters:
| 1 | Material Spec | Color-coated/Galvanized,/Alu-zinc steel sheet |
| 2 | Material yield stress | 235-345Mpa |
| 3 | Coil thickness | 0.25-1.00mm |
| 4 | Coil width | 914mm;1000mm;1200mm;1220mm and 1250mm |
| 5 | Working speed | 10 ~ 15m/min |
| 6 | Power requirement | Main motor power 3Kw |
| 7 | Decoiler | 5 tons hydraulic decoiler with coil dia. 508mm |
| 8 | Slitting blades | max.9 set blades |
| 9 | Max.slitting strips | 10 strips |
Material of main equipments:
Roller Material | High grade No. 45 forged steel, with digital-controlled procession, panted with hard chrome |
| Cutter blade: | Cr12 mould steel with quenched treatment, hardness HRC55-62 |
| Electric elements: | Control system PLC panel, transducer and touch screen originally imported from Mitsubishi of Japan. Other elements from famous suppliers in China |
Standard equipments of machine:
| 5 tons hydraulic un-coiler | 1 |
| Guiding equipment | 1 |
| Slitting equipment | 1 |
| Cutting equipment | 1 |
| Hdraulic stations | 2 |
| PLC control panel | 1 |
| Support tables | 2 |
| Spare parts | 1 wooden tooling box |

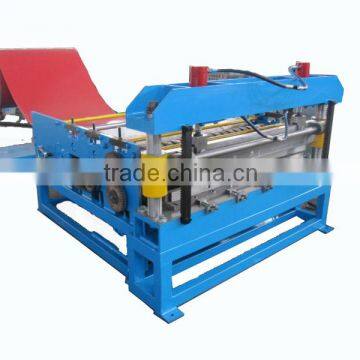

Reference pictures:
5.We do our utmost, Why WILLING
1). Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We
need your machines running in order to keep your business running.
2). Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3). Q: How does your factory do regarding quality control?
A: Quality is priority. WILLING People always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4). Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components.
