Perforated automatic shutter door metal making machine
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Condition | New | Type | Other, steel roofing tile making machines | |
| Tile Type | Other, PPGI/GI/GL/ALUMINUM COIL | Use | Roof | |
| Production Capacity | 7.5kw | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING25-183-1100 | Model Number | as the coustomer requirement | |
| Power(W) | 7.5kw | Voltage | 4kw | |
| Dimension(L*W*H) | 8500*1500*1400mm | Weight | 6000-8000kg | |
| Certification | CE, ISO9001 | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
shutter door cold forming machine
a. Main technical parameter:
| Suitable plate | 0.4-1.5mm Alum or steel |
| Working speed | 10-12m/min |
| Stations | 16sets of rollers |
| Material of roller | 45# advanced steel, plated hard chrome |
| Material of shaft | 45# advanced steel(Diameter: Ø40) |
| Driven | Gear box |
| Main power | 7.5kw |
| Cutting | pneumatic following cutting |
| Material of cutting knife | Cr12,Quench HRC 58-62 |
| Hydraulic Cutting blade | 3kw |
| controlled | PLC |
| Roller Material | High grade No.45 forged steel, coated with hard chrome. |
| Active Shaft Material | High grade No.45 carbon wrought steel, |
| Electric Elements | PLC control panel, transducer imported from Mitsubishi of Japan. |
| Cutter blades | Cr12 mould steel with quenched treatment. |
| other elements | from famous supplier in china |
Roller Material | High grade No.45 forged steel, coated with hard chrome. |
Active Shaft Material | High grade No.45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft. |
Electric Elements | PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China. |
Cutter blades | Cr12 mould steel with quenched treatment. |
working flow:
Uncoiling the sheet --- Infeed guiding --- Roll forming --- Rectifying the straightness ---
--- Measure length --- Cutting the panel --- panels to the supporter (option: automatic stacker).
uncoiler
Capability: 1.5Ton
Bound of expand &fight: 450mm—600mm
Way of feeding: manual
Automatic Tracking Cutter
Cutting type: hydraulic cutting
Cutting after forming: Cut the sheet after roll forming to required length
Material of blade: CR12with heat treatment
Motor power: 4kw
Length measuring: Automatic length measuring
Use imported high grade alloy blade, high quality & precision cutting

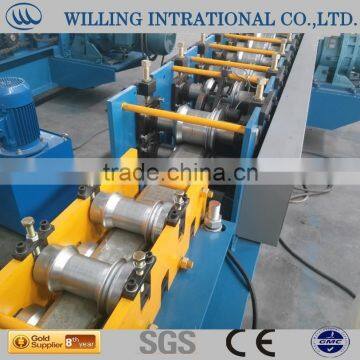

Roll forming main machine
working speed: 8m—15m/min (exclude cutting)
roll station: 14stations
material of roller: 45# forge steel, polished and coated with chrome
material of main shaft: 45# forge steel and quenched hardness 58-62 diameter roller: 60mm
main power: 3kw
forming thickness: 0.5mm—1.0mm
Transmission: chain
structure of frame: H beam steel plate
Material of Main Equipment
| Roller Material | High grade No.45 forged steel, coated with hard chrome. |
Active Shaft Material | High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. |
| Electric Elements | PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China. |
| Cutter blades | Cr12 mould steel with quenched treatment. |
Production
Terms
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and
lso train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
