Home > Products > ANGZI Band Saw Machine > Non-ferrous sawing machines for sale
Non-ferrous sawing machines for sale
- 350 Set / Sets per Month
- Shanghai Ningbo Guangzhou Shenzhen ect.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | Angzi | Model Number | EC-4265 | |
| Rated Power | 11kw(4P) | Dimension(L*W*H) | 4560*4200*3040(mm) | |
| Weight | 2150KG | Certification | ISO 9001 | |
| Warranty | 1 years warranty and lifetime maintenance | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

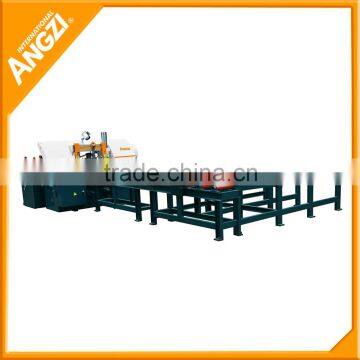

Non-ferrous sawing machines for sale
Productivity Features
·Hydraulic controlled sawing feeding
·High-precise liner guiding with high sawing/cutting precision
·Gantry type structure with high rigidity
·Double oil cylinder control with stable feeding
·Hydraulic platform feeding
·Hydraulic saw blade tensioning device, band saw overload protection device and
automatic brushing away device can be added by customers requirement
Hydraulic Vise
- Prevents material movement while sawing
- Easy set-up
- Positive clamping on full range of capacity
Dual Cut Control System
- Combines with fine feed roller for accurate material indexing
- Quick and easy set-up
- Blade feed controlled by both pressure and flow
- Maximum blade life in all cutting applications
- Easy set-up with reference cutting rate system
Semi Automatic Indexing
- Quick and easy indexing with fine feed roller
Machine Standard Features
- Blade Deviation Monitor
- Chip Conveyor
- CNC Controlled Down Feed
- Cutting Depth Control
- Cutting Rate Display
- Drive by No Torque Loss Helical Gear
- Hydraulic Clamping Blade Guides
- Light Beam Marking
- Motion Detector
- Outboard Vise
- Pressure Flow Valve
- Quick Approach Arm
- Remote Blade Guide Control
- Shuttle Table
- Wheel Cover Limit Switch
- Table Feed Control
Optional Accessories
- Beacon
- Roller Tables
Specifications may change without notice at the sole discretion of Angzi's Engineering Department.
Specifications
Capacity
| Cutting Capacity | Round (Diameter) | 25.60 " | 650 mm |
|---|---|---|---|
| Rectangle (W x H) | 25.60 " x 27.56 " | 650mmx700mm |
Blade and Vise Operation
| Saw Blade1 | Dimensions (L x T x W) | 1 1/2"x 0.050" x 270.07 " | 41*1.3*6860 mm |
|---|---|---|---|
| Blade Speed | 20/40/65 m/min | ||
| Tension Control | Manually | ||
| Blade Control | Top Limit Setting | Automatic Setting with Quick Approach Feeler | |
| Cutting Control | CNC-Light | ||
| Vise Operation | Type | Single Vise | |
| Control | Hydraulic Full-Stroke Cylinder | ||
Motors
| Motors | Main Motor | 5.5 kW | |
|---|---|---|---|
| Hydraulic Motor | 1.5 kW | ||
| Cutting Fluid Pump Motor | 0.09 kW | ||
Chip Disposal
| Chip Disposal | Chip Conveyor |
|---|
Dimensions and Weight
| Machine Dimensions (W x L x H) | L | W | H |
|---|---|---|---|
| 3270mm | 2540mm | 2160mm | |
| Machine Weight | 5,291lbs. | 2,400 kg. | |
Q: Can I have your quotation?
A: First, please inform us which material you would like to cut and its details includes size, solid or hollow, circular or rectangular,ect., without these parameters, we are not able to recommend you the suitable machine.
Q: What is the voltage and Hertz in your country?
A:In China,the Voltage is 380V(3 Phase),the Hertz is 50HZ, we can change the voltage and Hertz according to your requirement(also have 220V)
Q.Your price seems a little high?
A: You get what you pay for, our price is based on good quality,We sell the machines all over the world with good feedback from our customers, and we don't sell the machine with low configuration, cause it will trouble us more in the future maintenance.
Q: If OEM and ODM services available?
A: Yes. We can make the machines with customers' brand and logo. With professional engineers,we can also design and produce the machines according to customers' requests.
Q:What about the lead time for mass production?
A:Honestly,it depends on the order quantity and the season you make the order,always 14-29 days, and many models of band saw machine have stock
Q:What about the payments
A:We usually accept 30%TT for deposit and 70%TT before shipment.
Q:What is your terms of delivery?
We accept EXW, FOB and CIF,you can choose the one which is the most convenient or cost effective for you
Q.What about the shipping ways?
A:We will choose the sea transportation,and if you want the blade saw,
we will choose the express like DHL,UPS,ect. or other shipping ways according to your requirement
Let's talk details!
Contact Us
- Shanghai Angzi Machinery Equipment Co., Ltd.
- Contact nameGrace Lan Chat Now
- Phone86-021-39003396
- Address1st Floor, No. 440, Lane 5000, Baoqian Road, Waigang Town
