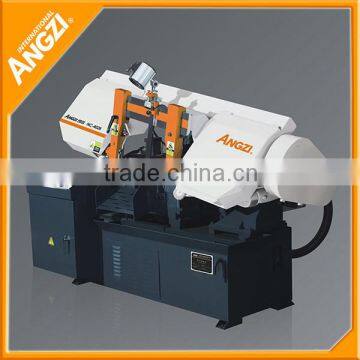

4228 CE automatic hydraulic nc band saw for steel bar rod pipe tube

Our machines and saw blades are majorly used for cutting metal tube,bar,beam,rod,ect.

Our machines are

Reliable

Economic and durable – Top concept of our Industrial designing
28 senior engineers
127 technology improvement
Over 20 years'R&D history
20,000hrs of prototype testing

Precise

Adopting more advanced processing technology Smooth saw blade nondeforming

for longer time Effectively increase 20% of useful life of saw blade Metal

cutting is to achieve a further high precision

Energy saving

Hydraulic fuel consumption is only 12.5% of the like products. By adopting

hydraulic system, motor converter technique and Other innovations we achieve

to reduce the power lose by 18%

Efficient

High power motor and new gearbox system exclusively developed by us, achieve

to increase the cutting speed by 16% compared with the like products

Saw Head Frame

The section frame carries the mountings for the two band wheels, heavy duty worm drive gear reducer, the band drive motor and saw guide arm mounting supports.

Band Wheels & Drive System

The band wheels are cast iron for long, productive life. The deflection free 1.38 inch (35 mm.) wheel spindles ensure the wheels run true regardless of tension stress or cutting loads. The spindle assemblies incorporate tapered roller bearings for greater rigidity and long service life. The wheel tracks the blade so that the back of the band is contacts the wheel flanges to support the band. The drive motor is coupled to the transmission through a variable speed pulley.

Blade (27mm)

The blade, for this capacity machine, can make full utilization of the band drive motor, when cutting all shapes and alloys.

Drive Wheel Transmission

The drive wheel transmission is designed and built by Angzi to provide high efficiency speed reduction, which requires no external cooling, to deliver more power to the large diameter drive shaft. This shaft ensures that this developed torque is transferred to the blade with no strobing, enabling the machine to efficiently cut high alloys as well as free machining materials.

Pressure/Flow Feed Control

The independent pressure and flow controls in series ensure the optimum cutting rate can be obtained regardless of section or alloy being cut. The pressure control determines the cutting force applied to the blade and the flow control sets the maximum fall rate of the head. For example for difficult to machine materials the pressure is set higher than free machining alloys and the flow is set lower, as shown on the escutcheons above the control knobs.

Idler Wheel Motion Detector

The wheel motion detector will turn off the blade drive in the case where a blade breaks or is jammed in the work piece. This feature also prevents premature wear on the drive wheel from a stalled band.

Smart Multiple Index

The machine control has the capability to make multiple full length index strokes until the length remaining to index is less than the full index stroke, the last index stroke is the remaining length.

Band Deviation Monitor

This patented cutting control device can reduce scrap by warning when the blade is no longer cutting within the operator's settings for deviation. The allowable deviation limit is set by the operator independently for each direction. The digital deviation indicator will flash when the blade deviation exceeds either maximum. If the deviation continues to exceed the preset value the NC controller will stop the cutting, raise the saw head and display the exceeded deviation value.

Split Front Vise

The work holding vise is split so that it clamps the work piece on both sides of the cutting plane. This additional support in front of the cutting plane minimizes the burr on the cut pieces.

Powered Chip Conveyor

The powered chip conveyor auger automatically removes the saw chips from the saw while draining the cutting fluid back into the fluid reservoir. The automatic chip conveyor greatly reduces cleanup time and enables the machine to run longer without operator cleanup.

Q: Can I have your quotation?

A: First, please inform us which material you would like to cut and its details includes size, solid or hollow, circular or rectangular,ect., without these parameters, we are not able to recommend you the suitable machine.

Q: What is the voltage and Hertz in your country?

A:In China,the Voltage is 380V(3 Phase),the Hertz is 50HZ, we can change the voltage and Hertz according to your requirement(also have 220V)

Q.Your price seems a little high?

A: You get what you pay for, our price is based on good quality,We sell the machines all over the world with good feedback from our customers, and we don't sell the machine with low configuration, cause it will trouble us more in the future maintenance.

Q: If OEM and ODM services available?

A: Yes. We can make the machines with customers' brand and logo. With professional engineers,we can also design and produce the machines according to customers' requests.

Q:What about the lead time for mass production?

A:Honestly,it depends on the order quantity and the season you make the order,always 14-29 days, and many models of band saw machine have stock

Q:What about the payments

A:We usually accept 30%TT for deposit and 70%TT before shipment.

Q:What is your terms of delivery?

We accept EXW, FOB and CIF,you can choose the one which is the most convenient or cost effective for you

Q.What about the shipping ways?

A:We will choose the sea transportation,and if you want the blade saw,

we will choose the express like DHL,UPS,ect. or other shipping ways according to your requirement
