Home > Products > Mortar Pump > Hydraulic Cement Grout Mortar Pump

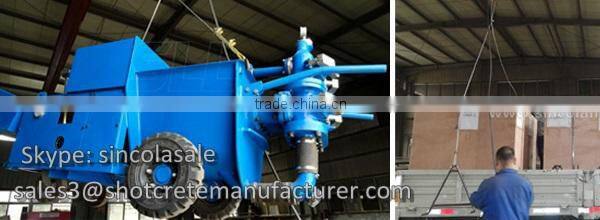

Hydraulic Cement Grout Mortar Pump
- SHANGHAI QINGDAO TIANJIN
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
-


High Quality Double Cylinder Mortar Pump, Mortar Pump
 -


High Quality Double Cylinder Mortar Pump From China
 -


Mortar Pump, High Quality Double Cylinder Mortar Pump
 -


Cheap Double Cylinder Mortar Pump With High Quality
 -


High Quality Double Cylinder Mortar Pump for Sale
 -


High Efficiency of Hydraulic Plunger Pump

Product Details
| Place of Origin | China | Brand Name | SINCOLA | |
| Model Number | SG6050 | Theory | Other, piston pump | |
| Structure | Piston Pump | Usage | Other, cement mortar and sand mortar,etc. | |
| Power | Other, Electric, 7.5 kW | Standard or Nonstandard | Standard | |
| Fuel | Other, Electric | Pressure | High Pressure | |
| Application | Other, grouting cement mortar and sand mortar,etc. |
Wooden case with international standard or Customized
Product Description
Specifications
Hydraulic Cement Grout Mortar Pump for SaleFor rail,road tunnel,hydropower construction,slope consolidation subway
Pump Morta
What is Double Cylinder Mortar Pump ?
Introduction Of Hydraulic Cement Grout Mortar Pump for Sale
- Cement Mortar Pump with Double cylinder and double acting is widely used for its convenient maintenance, high working pressure and high efficiency, working reliability, compact structure etc.
 - Mortar pump is used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying.
 - Apply to grouting in mine gallery, underground engineering, rail and road tunnel, hydropower construction, slope consolidation,subway and civil engineering etc.
 - Professional design,reasonable price, good after-sale service.


Technical Parameters of Hydraulic Cement Grout Mortar Pump for Sale
Technical Parameters  | |
Model:  | SG6050  |
Output  | 60 L/min  |
Cylinder Dia  | φ 90 mm  |
Working Pressure  | 5.5 MPa(55bar)  |
Cylinder  | 2  |
Piston stroke  | 145 mm  |
Piston Speed  | 82 /min  |
Inlet diameter  | 75 mm  |
Outlet diameter  | 50 mm  |
Max. Aggregate. size  | 5 mm  |
Cement/Sand  | ≥ 1/3  |
Hopper Volume  | 160L  |
Conveying Dist.  | 50-120m  |
Power  | 7.5 kW  |
Transmission  | Hydraulic drive  |
Overall Dimensions  | 1400× 650× 920 mm  |
Weight  | 800 kg  |

Applications Of Double-cylinder Mortar Pump Mortar Pump is mainly applied for pumping or grouting mortar or the similar material.and always used for tunnel, mining project, dam, foundation engineering of big bridge and high-rise building, and the different kinds of underground engineering etc.
Delivery Detail: 7-15 working days after the confirmation of the order
Packaging Detail: The wooden cases with international standard, free fumigation safe Wood case package, or customized.
FAQ:
1. How many people that need to operate the mortar pump machine?
One or two workers can use it successfully.
2. What can we do, if the voltage isn't suit in our country?
We can change the voltage according to your requirements.
3. Available shipment port?
FOB SHANGHAI
FOB TIANJIN
FOB QINGDAO
4. How much is mortar pump machine price?
It's cheap than the other similar products!
5. Our company have some high quality mortar pump for sale,do you want to to buy?
Contact me,I'll give a reasonable quotation.
More question, please contact me by following ways in time.

Maybe you would like to inquiry some information of High Quality Double Cylinder Mortar Pump
Please contact me
My Skype: sincolasale
Company Profile
                    Zhengzhou Sincola Machinery Co., Ltd. is a high-technology, modern enterprise professionally engaged in the R&D and manufacturing of full automatic dry mortar plant and semi automatic dry mortar production line 1-5tph dry mortar plant and shotcrete machine plaster machine and mortar pump,wall rendering machine,concrete pump etc.
