BB5 Transfer Pump Manufacturer

FOB Price

US$ 1,000 - 10,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Capacity:600- 2500m
2.Head:0-240m
3.Temperature:No more than 510C
4.Material:Cast steel,SS304,SS316,SS316Ti,SS316L,CD4MCU

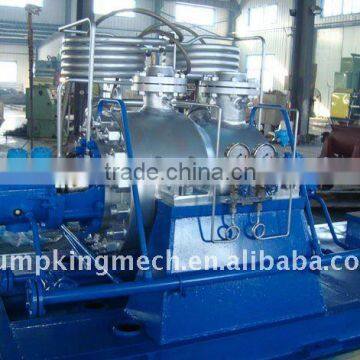

BB5 is double-casing radially split multistage between-earings pumps (barrel pumps).

Capacity: 30 – 1250m3/h

Head: 600 – 2500m

Temperature: No more than 510°C

Material: Cast steel, SS304, SS316, SS316Ti, SS316L, CD4MCU

No.	Parameter		Requirements
1	FUNCTIONAL
1.1	Q	m3/hour
1.2	H	m
1.3	The pressure at the inlet / outlet (no more)	Kg s/sm2
1.4	NPSH (no more)	m
1.5	For a semi-submerged (submersible) pumps:
1.5.1	The immersion depth (distance from the surface of the liquid to the suction port)	m
2	PUMPED CONTENT
2.1	Name of fluid
2.2	Solids content:
2.2.1	volume concentration	%
2.2.2	The dimensions of the particles (abrasive / not abrasive)	mm
2.3	Operating temperature, tp	0C
2.4	Viscosity (kinematic) at tp	sSt (mm2/s)
2.5	Density at tp	kg /sm3
3	MATERIAL RESISTANT to the fluid
	-
4	SHAFT SEAL
4.1	Gland single / double (C / SD)
4.2	Mechanical Single / Double (5/55)
5	CONDITIONS OF USE (SETUP)
5.1	Climatic performance and category of accommodation during the operation in accordance with GOST 15150-69
5.2	Class of Explosion and fire zone placement of RB
5.3	The need to supply the cooling / a heating fluid
6	DRIVE
6.1	Voltage, number of phases
6.2
7
