multistage slurry pumps
- Any ports
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | DK | |
| Model Number | DZ | Theory | Centrifugal Pump | |
| Structure | Multistage Pump | Usage | Other, abrasive slurry | |
| Power | Electric | Standard or Nonstandard | Standard |
Product Description
Specifications

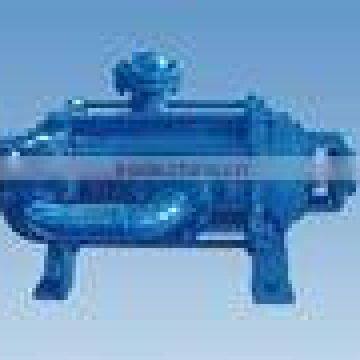

Type DZ pump is a single casing horizontal sectional multistage pump. The low ad high sections are symmetrically placed.Type DZ pump is a single casing horizontal sectional multistage pump. The low ad high sections are symmetrically placed. All sections are tightl connected by a pull rod.
The dirction of pump suction can be adjusted at left level, right level and upper vertical. The radial force is borne by roller bearings. Two angular contact ball bearings placed in back to back are used to limit axial position and to bear remaining axial force.
Q=50-1100m3/h
H=120-650m
Type DZ multistage slurry pump is suited to deliver liquid with suspending fine solid particle(ash&sludge, gravel and so on). it is widely used to delivery abrasive or corrosive slurry for departments of power, metallurgy, mining, coal, building material, chemical and so on, especially for delivering coal slurry in the process of coal&chemical engineering, ash water in power plant and slurry in mine well, the temperature of media should not be higher than 100'C. The size of solid particle in medial should not be larger than 3mm and the concentration in volume of solid& liquid mixture should be not arger than 30%.
