Home > Products > Hammer crusher > High Crushing and Efficiency Hammer Crusher Machine
High Crushing and Efficiency Hammer Crusher Machine
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Hammer Crusher | |
| Application | cement plant, power | Motor Type | AC Motor | |
| Power(W) | 45-55kw | Capacity(t/h) | 30-40 | |
| Place of Origin | Shandong, China | Brand Name | Long Teng | |
| Model Number | 800*800 | Dimension(L*W*H) | 800*800mm | |
| Weight | 5.4t | Certification | ISO CE | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High crushing and efficiency hammer crusher machine
Product Description
- ISO9001: 2000
- Over 40 years experience of manufacturing
- High efficient; capacity: 5-350 t/h
- Brand: Long Zhong
- Model: Double acting jaw crusher and Single acting jaw crusher.
Single-acting Jaw Crusher
Model | Max. size of input (mm) | Size of output (mm) | Capacity (t/h) | Power (kw) | Total Weight (t) |
PE250X400 | 210 | 20-70 | 5-20 | 15 | 1.9 |
PE400X600 | 340 | 40-100 | 75-40 | 30 | 6.2 |
PE500X750 | 420 | 50-100 | 20-70 | 55 | 10.5 |
PE600X900 | 520 | 60-150 | 50-150 | 75 | 16.5 |
P750X1060 | 520 | 80-140 | 50-180 | 110 | 29 |
PE800X1060 | 420 | 120-200 | 130-230 | 110 | 31 |
PE900X1200 | 750 | 140-220 | 140-260 | 110 | 48 |
PEl000X1200 | 850 | 190-270 | 300-350 | 110 | 53 |
Double-acting Jaw Crusher
Model (mm) | 150X750 | 250X1000 | 250X1200 |
Size of inlet (mm) | 150X750 | 250X1000 | 250X1200 |
Max. size of input (mm) | 120 | 210 | 210 |
Size of output (mm) | 10—40 | 10—50 | 15—60 |
Rotary Speed (rpm) | 320 | 330 | 330 |
Capacity (t/h) | 8-35 | 15-50 | 20-70 |
Power (kw) | 5.5-7.5 | 7 . 5-11(15) | (22)-30 |
Total Weight (t) | 3 . 3 | 6.7 | 8 |

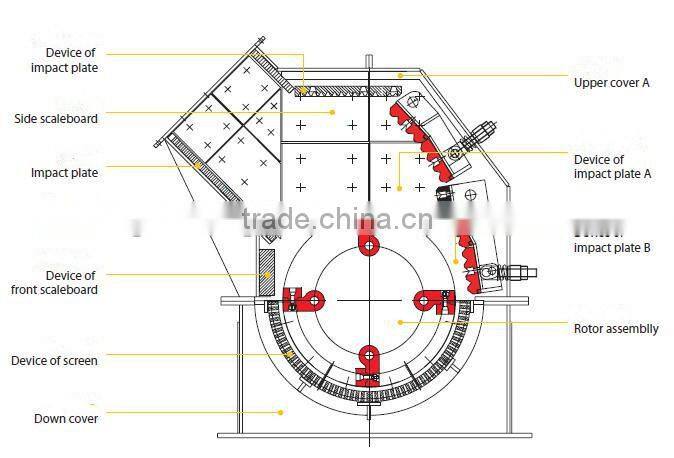

Working Principle of Hammer Crusher
The motor drives the rotor rotate the hammer crusher with high speed through the belt, and on the rotor there are a series of hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size. This machine can be adjusted according to user space grate section, change the particle size, to meet the different needs of different users.
The operating personnel must understand the performance, structure of the crusher, and grasp some of the installation of the operating rules, requirements of each class at least three inspections, and regularly grease and fastening the connecting wire, to ensure the normal operation and crushing machinery. Feeding to uniform, it is strictly prohibited to machine into the machine, in order to prevent damage to the mechanical.

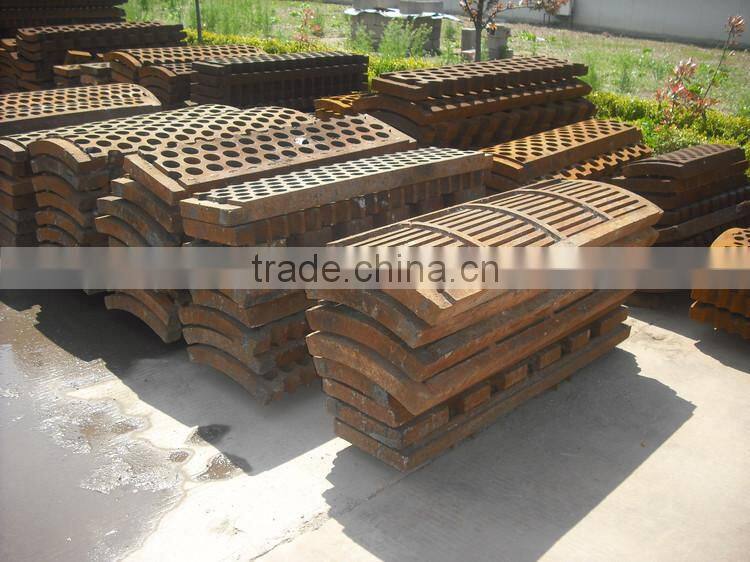

Wearing parts and Fittings

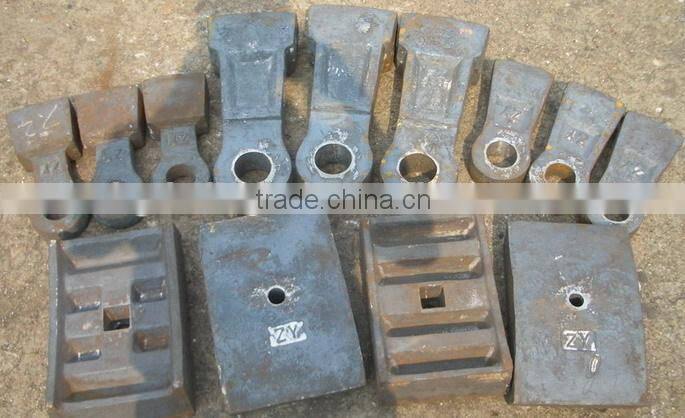

Wearing parts are mainly the hammer, the hammer head shaft lining plate, a sieve plate, etc.
Perennial plant to ensure the supply of all kinds of fittings. Thoughtful service, timely delivery.
(Shandong. China)Zhangqiu Long Teng Cement Machinery Making Co., Ltd. has become one of the new domestic cement equipment and mining equipment manufacturing enterprises after constructing and developing for 40 years. Main products include complete machines and accessories of ''Dragon Heavy Industry'' brand large and medium-size ball mill, cement rotary kiln, dryer, reduction gear, crusher, roller press, novel biological granulation machine, brick-making machine, etc., and wear-resistant consumable materials, such as steel balls, steel segments, liners, etc.
Welcome to china and visit our factory!!
