China Mining Hammer Crusher/Mill From Longteng Factory
- Qingdao Port
- T/T
You May Like
-
2014 Hot Sale Low Price Hammer Mill
-
Professional New Designed Hammer Mill for Factory
-
High Quality CE Approved Hammer Crusher for Industrial Field
-
Energy Saving Large Productivity Hammer Mill With ISO Certificate
-
2014 Zhangqiu Longteng Hammer Crusher Plant
-
ISO Quality Certificate Hammer Crusher for Crushing Stone
Product Details
| Condition | New | Type | Hammer Crusher | |
| Application | mining, quarry,Stone crushing | Motor Type | AC Motor | |
| Power(W) | 11-440kw | Capacity(t/h) | 5-280 | |
| Place of Origin | Shandong, China | Brand Name | Longteng | |
| Model Number | PC series | Dimension(L*W*H) | can order | |
| Weight | 0.8-37.5t | Certification | ISO,CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
China mining Small Hammer Crusher1,high technology
2.environmental
3,less operation cost
4, durability

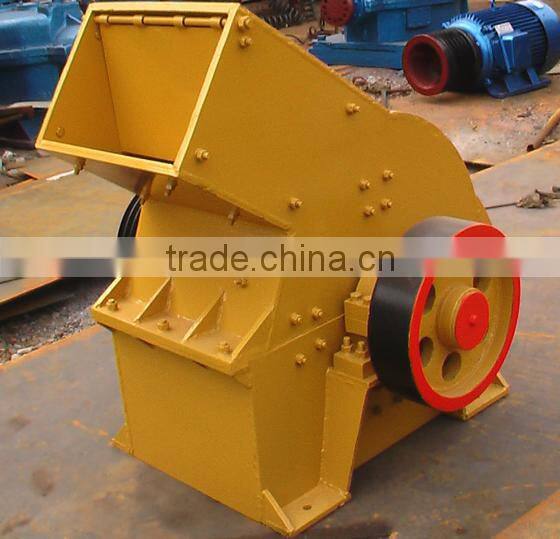

China mining Hammer Crusher/Mill from Longteng Factory
Hammer crusher (hammer mill) is suitable for mid-hard and light erosive materials, whose pressure resistance strength is no more than 100Mpa and humidity lower than 15%, such as coal, salt, chalk, gypsum, blocks, limestone, etc. The PC-Hammer crusher is suitable for both dry and wet crushing of brittle, medium-hard materials for the mining,coal, metallurgic, construction material, road building, and chemical industries. the maximum, compressive resistance of the crushed materials can be up 150Mpa.
Working Principle of Hammer Crusher:
The motor drives the rotor rotate the hammer crusher with high speed through the belt, and on the rotor there are a series of hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size. This machine can be adjusted according to user space grate section, change the particle size, to meet the different needs of different users.
Spare parts of hammer crusher
Use:The crusher can crush medium-hard and crispy materials,such as line stone and coal with compression resistance less than 150kg/cm2 in the fields of cement,mining,coal,electricity,chemical industry etc.
Technical Data of Hammer Crusher:
Model | Rotor speed (r/min) | Feed opening size (mm) | Max feeding size (mm) | Discharghing size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) | Overall dimensions L×W×H (mm) |
PC400×400 | 1500 | 145×295 | 100 | 0-30 | 5-8 | 7.5 | 0.9 | 844×942×878 |
PC600×400 | 1000 | 295×450 | 100 | 0-35 | 10-12 | 18.5 | 1.5 | 1000×1000×1300 |
PC600×600 | 1000 | 295×570 | 100 | 0-35 | 12-18 | 45 | 2.14 | 1315×840×1501 |
PC800×600 | 1000 | 350×570 | 120 | 0-45 | 20-25 | 55 | 2.45 | 1515×2586×1040 |
PC800×800 | 1000 | 350×850 | 120 | 0-45 | 35-45 | 55 | 3.05 | 1515×2831×1040 |
PC1000×800 | 1000 | 580×580 | 200 | 0-45 | 25-40 | 110 | 6.5 | 3206×2210×1515 |
PC1000×1000 | 1000 | 580×1060 | 200 | 0-45 | 40-80 | 132 | 7.59 | 3514×2230×1515 |
PC 1250×800 | 750 | 650×850 | 200 | 0-45 | 20-50 | 132 | 11.7 | 2630×1780×2050 |
PC1250×1250 | 750 | 650×1330 | 200 | 0-45 | 90-110 | 185 | 13.2 | 2630×2180×2050 |
PC1400×1400 | 750 | 1050×1540 | 250 | 0-45 | 120-170 | 280 | 17.2 | 2790×2800×2310 |
PC1600×1600 | 600 | 1500×1785 | 350 | 0-60 | 220-280 | 450 | 22.8 | 3350×3120×2660 |
Company Breif
We are a solid Quarry/Mining crusher & equipment manufacturer rather than an assembly factory in Shandong province, east China since 1970.
Our Features
I. 150,000 sqm plant verified by the Bureau Veritas including casting steel/metalworking/machining/welding/assembly/painting workshops.
II. All processing machines are introduced from German, Russia and Japanto guarantee the preciseness of each manufacturing step.
III. Participating in China governmental projects many times such as Jinan Yaoqiang International Airport.
VI. All products are ISO9001:2008 quality certified and patented by China Authority.
If you have any interest in our products, please feel free to contact us:
Skype: yzjx1226
QQ: 476597739
Welcome to visit our factory in Jinan, Shandong!
