Toroidal Transformer With 166V Rated Voltage, Available in Various Colors

FOB Price

Negotiable / Piece

300 Pieces(Min. Order)

Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	EMEIS
Model Number	Customized	Usage	Audio
Phase	Single	Coil Structure	Other, Toroidal, Toroidal
Coil Number	Autotransformer

Product Description

Specifications

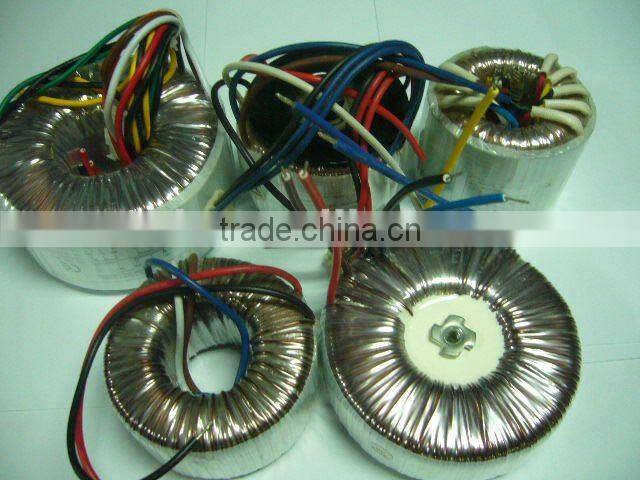

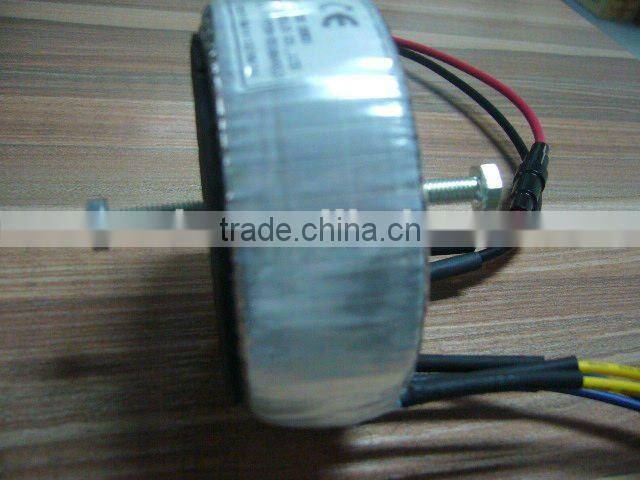

Copper toroidal transformer
1.High reliability and efficiency
2.Low magnetic leakage
3.Good quality and price
4.Customized

Toroidal Transformer with 166V Rated Voltage, Available in Various Colors

Key Specifications/Special Features:

Rated power: 50VA
Voltage: 230 or 12V AC
Power ratings: 80 to 200VA
Designed for audio equipment, medical use, power sources, lighting purpose and general purpose applications
Customized specifications are accepted
Regarding to halogen lamp transformers
TUV, GS, UL and CE certified

HDB Series Overall Size & Installation Size (More Sizes and VA Available) Toroidal/Ring/Annular/Wreathe Electronic Transformer
Volume (VA)	Type 1		Type 11		Type 111
Volume (VA)	Overall H× θ (mm)	Installation a× b (mm)	Overall H× θ (mm)	Installation a× b (mm)	Overall H× θ (mm)	Installation a× b (mm)
8	33× 65	55× 55	38× 61	45× 45
10	30× 78	70× 70	33× 70	55× 55	38× 62	55× 55
12	32× 81	70× 70	34× 70	55× 55	39× 65	55× 55
15	33× 82	70× 70	35× 72	60× 60	40× 66	55× 55
18	34× 83	70× 70	40× 71	60× 60	50× 68	55× 55
25	35× 88	70× 70	40× 78	60× 60	50× 72	60× 60
40	33× 105	85× 85	36× 92	78× 78	41× 90	70× 70
50	34× 107	85× 85	45× 95	78× 78	50× 90	70× 70
60	50× 95	78× 78	55× 85	70× 70
80	52× 100	78× 78	55× 93	70× 70	70× 78	60× 60
100	52× 105	85× 85	55× 98	78× 78	65× 85	70× 70
120	52× 110	85× 85	68× 102	78× 78	75× 85	70× 70
160	57× 115	95× 95	65× 110	85× 85	70× 112	85× 85
200	60× 128	105× 105	72× 115	85× 85	82× 108	85× 85
250	63× 132	105× 105	75× 118	95× 95	83× 112	85× 85
320	65× 135	105× 105	75× 130	105× 105	80× 118	95× 95
360	78× 130	105× 105	83× 125	95× 95
400	65× 138	105× 105	80× 135	105× 105	93× 120	95× 95
500	78× 137	115× 115	80× 140	115× 115	88× 135	105× 105
600	78× 155	135× 135	85× 145	115× 115	93× 145	105× 105
Remark: 1. H: Height, θ : Diameter, a: Width of Base Plate, b: Length of Base Plate. H× θ is maximum dimension, a× b is standard dimension. 2. This size is HDB series (wire total in Copper), size of HDBLL series (wire total in Aluminum), HDBL, HDB L-L series (wire in Aluminum Clad Copper) is larger a little than this. 3. Dimensions freely adjustable.

OEM, ODM and Custom designed drawing and samples acceptable
All data are subject to modification without notice in advance.
