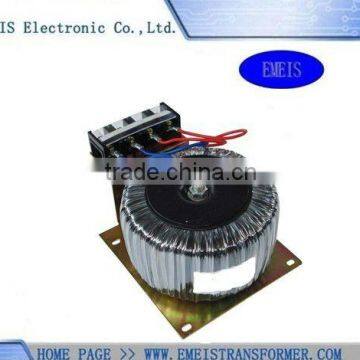

1500va Open Frame Linear Toroidal Transformer with Connector Block

Toroidal/Ring/Annular/Wreathe Electronic Transformer 1) Basic Data Capacity: 8VA-30kVA Phase: Single Input: AC Power with Voltages of Various Countries Output: AC Current, Voltage, According to Customers Requirements Frequency: 50-60Hz Voltage Regulation: 12%-3% Manufacture Standard: GB/T15290-94, GB/19212-2006, GB2828-2829-87 Insulation Class: B, 130 Celsius Degree; E, 120 Celsius Degree Temperature-rise: ≤ 85 Celsius Degree
2) Certification: CE, RoHS, SGS, CESI and ISO9001
3) General Features: Good Price-Function Ratio Reliable Performance and Safety Small Volume & Low Weight Low No-load Losses Low Mechanical Hum Good Shielding Performance, Low Magnetic Leakage High Efficiency Low Operating Temperature-rise Dimension Adjusted Freely Easy to Mount & Fasten Excellent Workmanship
4) Features of Encapsulation: Well encapsulated by iron shell or plastic shell to adapt various outdoor hard working environment. Anti-shock, Anti-moisture, Anti-dust, High anti-strength
5) Comparison on Transformer with Toroidal, EI, R, CD Shape Core Since 2000, we have been playing a leading role to replace the types of R, CD, EI with toroidal type for our customers from each part of the world. Core EI, R & CD Toroidal Dimension Not Adjustable Adjustable Performance Average Better Reliability Average Better Price Expensive 10%-30% Cost Saved
6) Testing Items: No-load Test(No-load Current, No-load Voltage, No-load Loss) Load Test (Load Voltage, Temperature-rise) Inductive Voltage Test DC Resistance Test Safety Test
7) Application: Electronic Meter & Apparatus Cable TV & Digital Network Electronic Control Medical Equipment New Electric Power Supply Decorative Illumination System Security Monitor & Control System
8) Installation Horizontal (Non-conventional-type base plate), Sunk, Side Type, Bridge
9) Productivity: Toroidal/annular/ring transformer 3.2 million PCS, EI transformer 3 million PCS annually; Toroidal iron core over 300 tons monthly. 10) Workforce: About 400 workers, 26 technicians, 2 senior engineers
11) Equipment: Equipment: Over 100 sets of Toroidal Winder, 3 EI Transformer Lines, 4 sets of Annealing Furnaces, A set of Nitrogen and Hydrogen Production Equipment, 5 sets of Sheet Cutter, 5 sets of Laser Welder, A set of Automatic Dispenser, A set of Industrial Continuous Ink Jet Printer
12) Label Info: Certificate Logo, Basic Electronic Data, Manufacture's Information, also can be printed according to customer's Advice Bar Code available according to customer's advice.
13) Main Customer Overseas: ABB, Denmark Foss, Netherlands Inrada, Belguim Connect System, Germany Connectronics GmbH, USA Gallien, Australia JOY, Russia Asteroid, Japan Wireless Tsukamoto, South Korea Choyang Medical Domestic: Chonghong Electric, Tsinghua Tongfang, Hushan Electronic
14) Remark: OEM, ODM and Custom designed drawing and samples acceptable All data are subject to modification without notice in advance.
