CE Approved Mini Tractor Loader Front End Loader for Tractor Quality Choice
- Qingdao/Shenzhen/Shanghai/Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
1200kg/1.2 Ton Mini Skid Steer Wheel Loader Farming Tractor Front Loader
-
Excellent Level Skid Steer Loader Forway Skid Steer Loader Used With Ice Breaker
-
From China Mainland Skid Loader Broom Skid Steer Tyres Mini Steer
-
Import From China BI400 Micro Skid Steer Loader, Micro Wheel Loader
-
Best Price China Hysoon Electric Skid Steer Loader
-
CE and EPA Approved 350kg Used Mini Skid Steer Loader Racoon Skid Steer Loader Quality Choice
Product Details
| Condition | New | Brand Name | Brilliant | |
| Model Number | JC75 | Place of Origin | Shandong, China | |
| Type | Mini Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 3560x1900x2050mm | Rated Load | 1050kg | |
| Certification | CE,ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

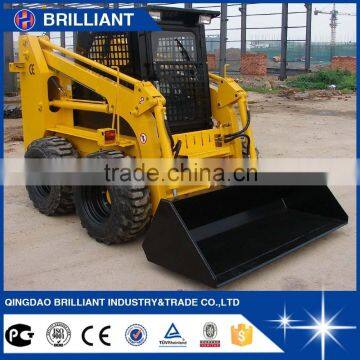

CE Approved Mini Tractor Loader Front End Loader for Tractor
Product features:
1. Small Size, convenience transporting by pick-up, easy operating in narrow place.

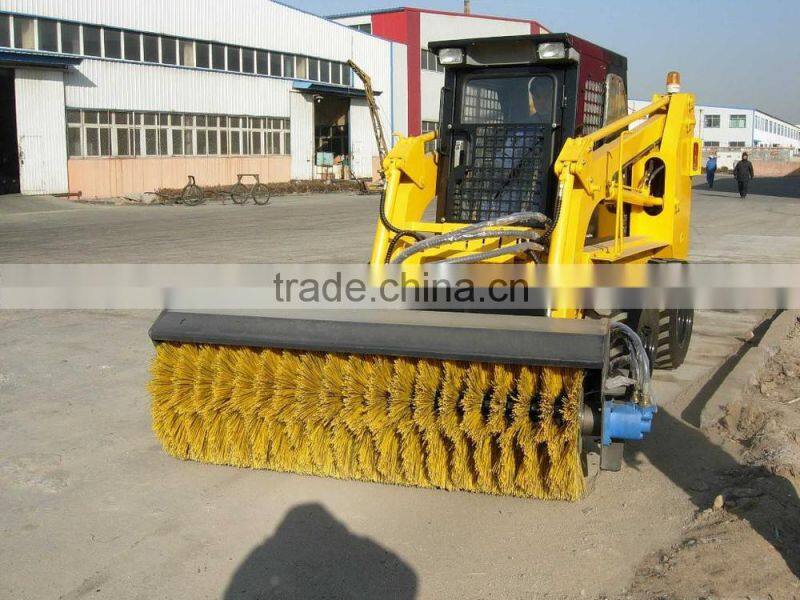

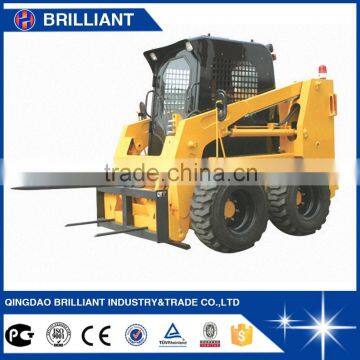

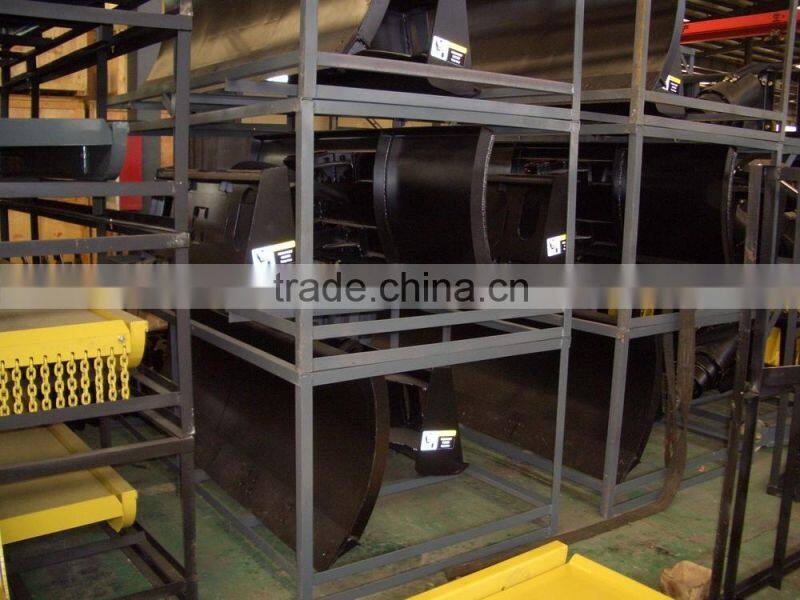

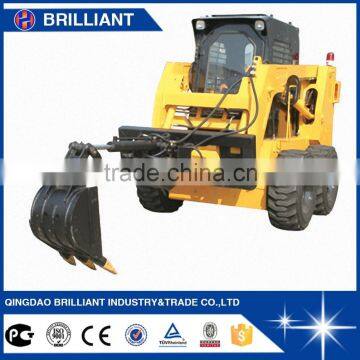

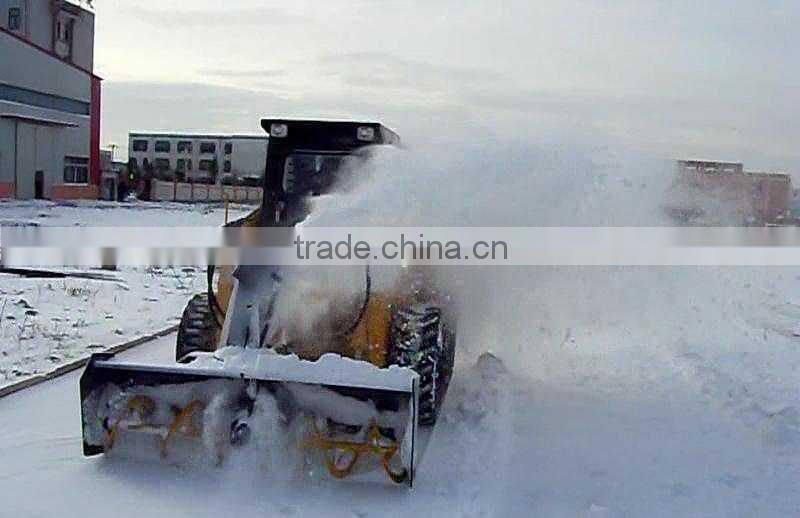

2. 30 kinds of attachments
3. With Hyundai or Perkins engine as option

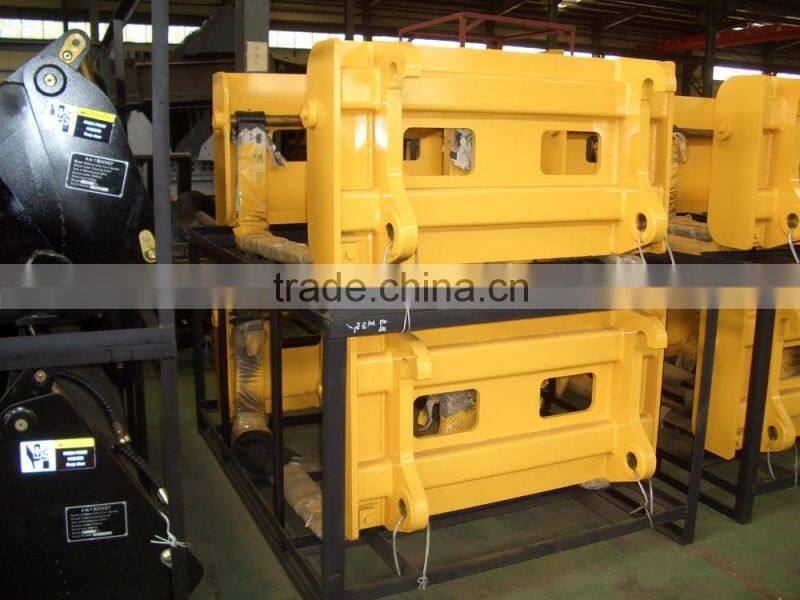

4. Easy changing attachments with quick hitch
5. RoPS/ FoPS Tilting Cab, easy maintenance.
The design is humanized:
1.Handling room provides exceptional working comfort with excellent visibility, enhanced fingertip control and optimum instrumentation;
2.Automatic drawing- back safety belt, when rising, the safety lock lever is able to lock the driving system and controlling handles quickly to make a stopping brake, prevent operator leave the seat accidentally;
3.Operating instrument panel is simple and easy to understand, avoiding mistakes;
4.High comfort, shock-absorbing seat, full closed and low noise handling room air-conditional;
5.Simple operation, easy to learn;
6.Humanization designed, instrument panel provides operating, checking, supervisory controlling function.

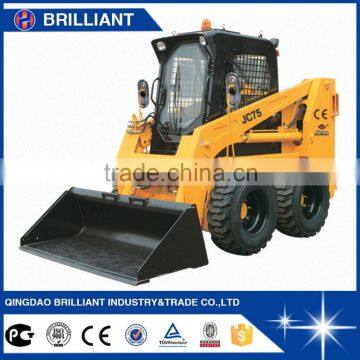

| Specifications | JC75 |
| Rated operating capacity(kg) | 1050 |
| Tipping load(kg) | 2100 |
| Bucket capacity(m3) | 0.55-0.6 |
| Operationg weight(kg) | 3500 |
| Max. travel speed(km/h) | 12 |
| Hydraulic pump flow(L/min) | 75/125 |
| Fuel tank capacity(L) | 60/90 |
| Tires | 12/16.5NHS |
| Overall dimensions(mm) | 3560×1900×2050 |
| Dimensions | |
| Height at maximum extension(mm) | 4070 |
| Height to bucket hinge pin(mm) | 3150 |
| Width with bucket(mm) | 1900 |
| Track width(mm) | 1500 |
| Wheelbase(mm) | 1185 |
| Ground clearance(mm) | 260 |
| Dump angle | 40° |
| Dumping height(mm) | 2450 |
| Maximum reach(mm) | 710 |
| Rollback at ground | 26° |
| Angle of departure | 20° |
| Engine | |
| Maker/Model | 498T Deutz |
| Net power | 75hp/2500rpm |
| Type | 4Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
| Displacement(L) | 3.3 |
| Standard | Standard bucket |
| Enclosed operator cab | |
| Hydraulic joystick controls | |
| Auxiliary hydraulic couplers | |
| Optional | Prehest starting assist system for extreme cold weather |
| High-flow hydraulic system | |
| Cab fitted with a heater as standard | |
| Air conditioner | |
What's JC75's MOQ?
- 1 set.
What's JC75's Engine?
- Optional Perkins,Cummins,Deutz.
Can I visit the factory?
- Of course, you will be warmly welcomed!
