JC35H 2200kg Compact Track Skid Steer Loader
- Qingdao/Shenzhen/Shanghai/Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
500kg Hot Small Mini Skid Steer Loader With Digger,auger,dozer,trencher for Sale, JC35H Mini Loader
-
Most Popular 500kg Small Skid Steer Loader for Sale
-
700kg Wheel Loader Earth Moving Machine Mini Skid Steer Loader With CE
-
700kg Hot Small Mini Skid Steer Loader With Digger,auger,dozer,trencher for Sale, JC45G Mini Loader
-
China Loader Hot Small Skid Steer Loader for Sale With Hydraulic Breaker Quality Choice
-
CE Certification New Mini Skid Steer Loader Price
Product Details
| Condition | New | Brand Name | Brilliant | |
| Model Number | JC35H | Place of Origin | Shandong, China | |
| Type | Mini Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 2900x2000x1300 mm | Rated Load | 500kg | |
| Certification | CE,ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

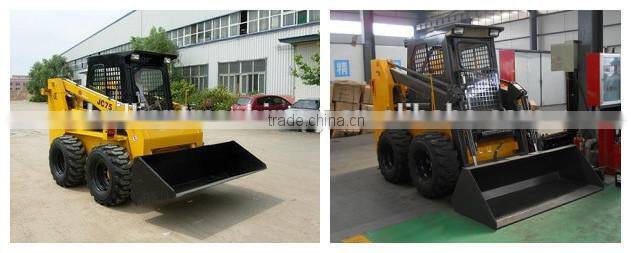

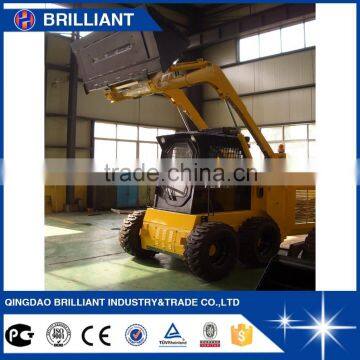

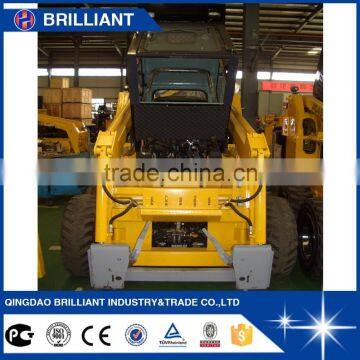

JC35H 2200kg Compact Track Skid Steer Loader
Product Features
1.Compact structure,maneuverable movement suitable for narrow space operation
2.Open cabin with mechanical control system
3.Double accelerograph control

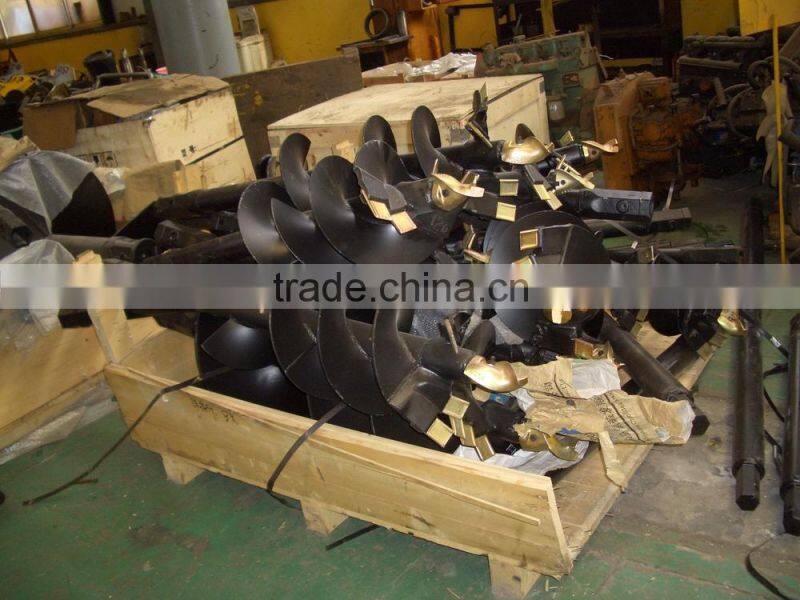

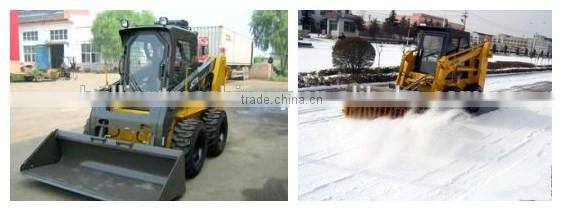

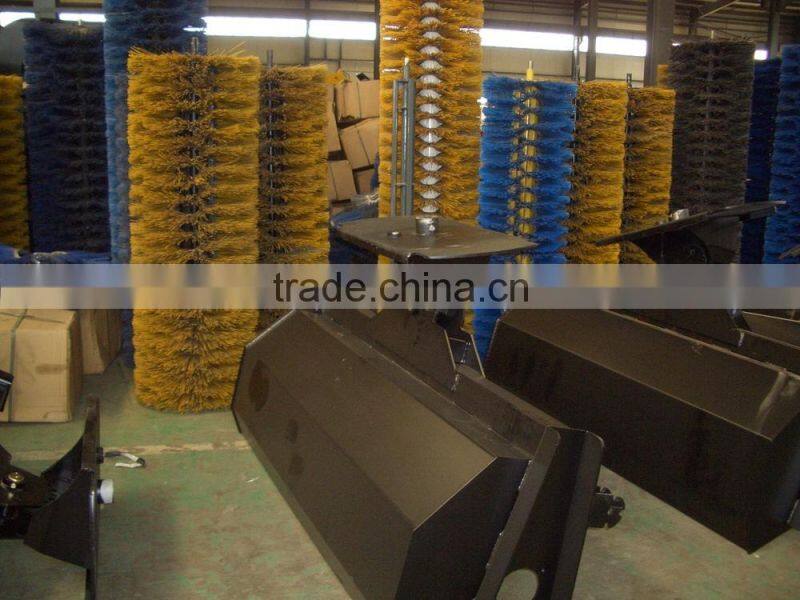

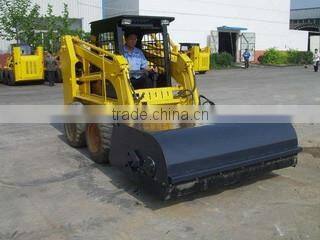

4.Multi-function with a wide range of attachments
5.Hydraulic brake
The design is humanized:
1.Handling room provides exceptional working comfort with excellent visibility, enhanced fingertip control and optimum instrumentation;
2.Automatic drawing- back safety belt, when rising, the safety lock lever is able to lock the driving system and controlling handles quickly to make a stopping brake, prevent operator leave the seat accidentally;
3.Operating instrument panel is simple and easy to understand, avoiding mistakes;
4.High comfort, shock-absorbing seat, full closed and low noise handling room air-conditional;
5.Simple operation, easy to learn;
6.Humanization designed, instrument panel provides operating, checking, supervisory controlling function.
| Specifications | JC35H |
| Rated operating capacity(kg) | 500 |
| Tipping load(kg) | 1000 |
| Bucket capacity(m3) | 0.25-0.4 |
| Operating weight(kg) | 2200 |
| Max. travel speed(km/h) | 12 |
| Hydraulic pump flow(L/min) | 75 |
| Fuel tank capacity(L) | 50 |
| Tires | 27*8.5-15-8NHS |
| Overall dimensions(mm) | 2900×2000×1300 |
| Dimensions | |
| Height at maximum extension(mm) | 3300 |
| Height to bucket hinge pin(mm) | 2725 |
| Width with bucket(mm) | 1300 |
| Track width(mm) | 1080 |
| Wheelbase(mm) | 891 |
| Ground clearance(mm) | 150 |
| Dump angle | 40° |
| Dumping height(mm) | 2050 |
| Maximum reach(mm) | 790 |
| Rollback at ground | 26° |
| Angle of departure | 20° |

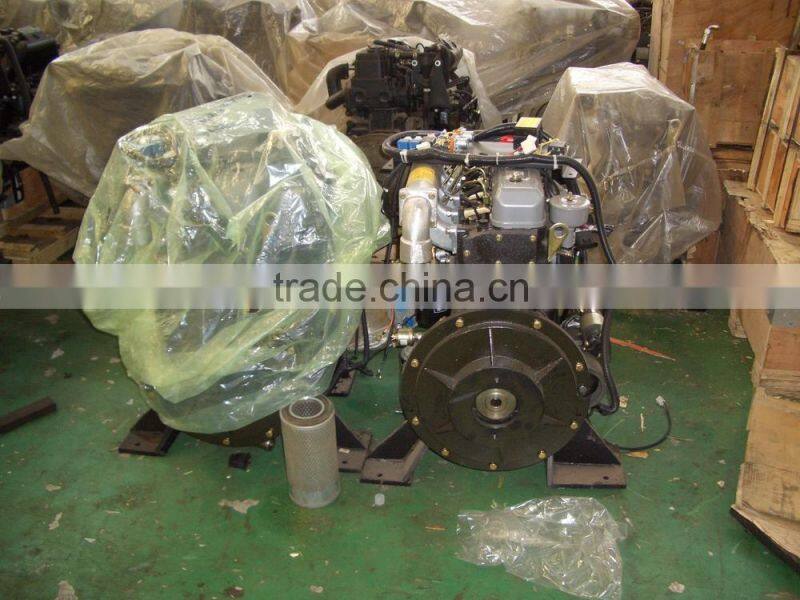

| Maker/Model | YND485G |
| Net power | 40hp/2600rpm |
| Type | 4Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
| Displacement(L) | 2.156 |
| Standard | |

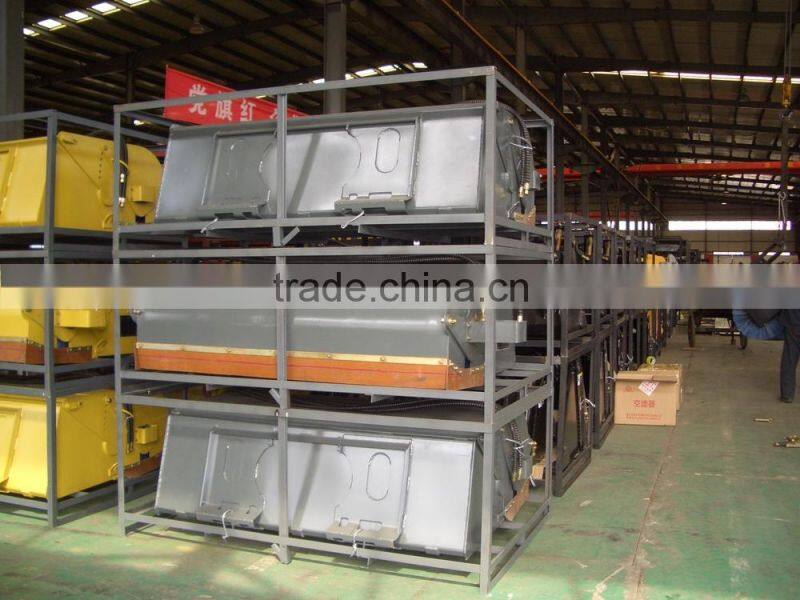

| Standard bucket | |
| Open-type operator cab | |
| Hydraulic joystick controls | |
| Auxiliary hydraulic couplers | |
| Optional | Enclosed operator cab |
| Preheat starting assist system for extreme cold weather | |
| Cab fitted with a heater as standard | |
| Air conditioner |
What's JC35H's MOQ?
- 1 set.
What's JC35H's Engine?
- Optional Perkins,Cummins,Deutz.
Can I visit the factory?
- Of course, you will be warmly welcomed!

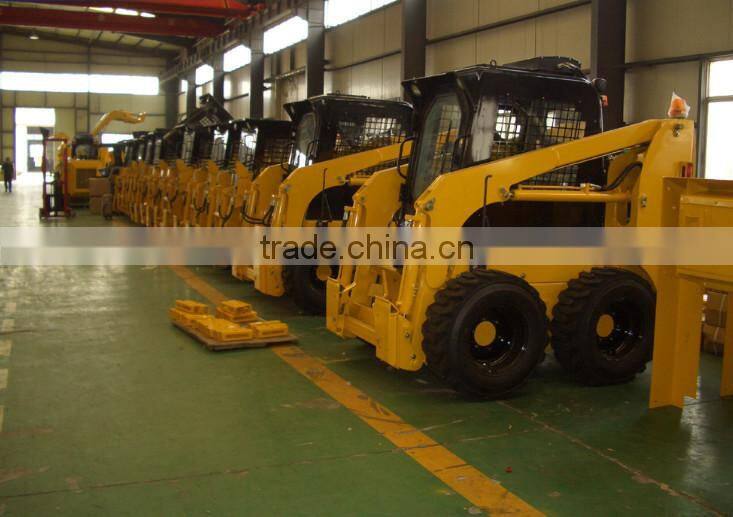

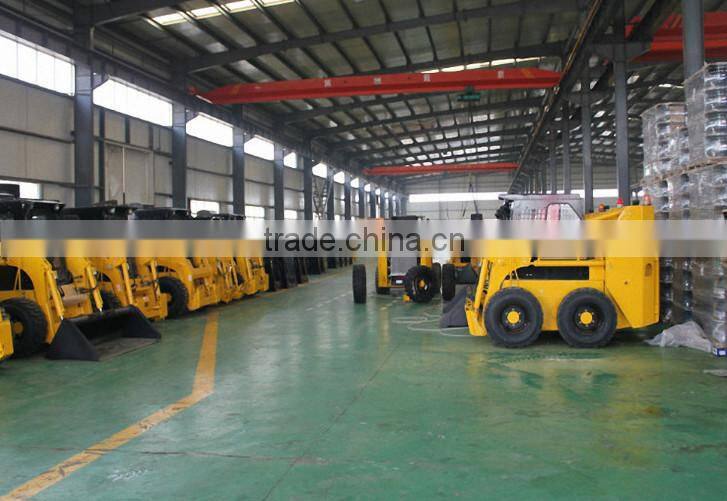

Qingdao Brilliant Industry & Trade Co., Ltd.
With 20 years experience in the field of engineering industry also under the support by XCMG which is the No. 1 Chinese construction machinery manufacturer, our products has been well recognized by the customers all around the world as the symbol of reliable performance, competitive price, advanced technology and sincere services.
Our Well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfactions, we could also offer OEM services.

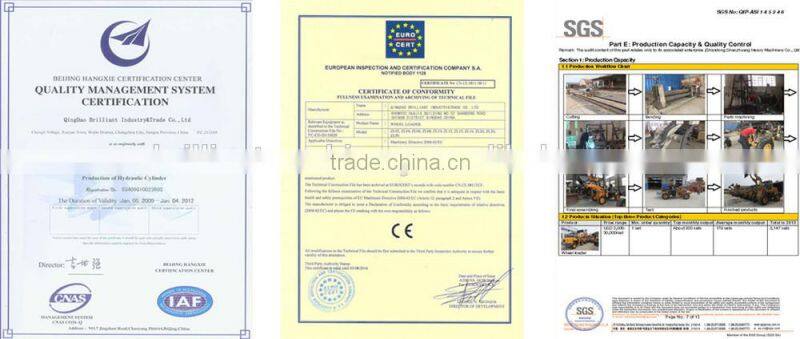

SGS Serial NO. | QIP-ASI145346 |
Audit Date | 2-Jul-14 |
Company Name | Qingdao Brilliant Industry & Trade Co., Ltd. |
Business Type | Manufacturer |
Year of Establishment | Mar 14,2014 |
Registered Capital | 83468.27 USD |
Products | Excavator, Wheel Loader, Bulldozer, Forklift and so on |
Number of Employees | 5~10 |
Main Markets | Africa, Asia,Europe,South America |
Sales Personnel: Grace
Tel: 0086-532-80907506
Fax:0086-532-82801885
Skype:brilliantmachinerygrace
Any comment&question,please contact with us freely!
We will try our best to meet your request!
Thanks for your valuable time!
