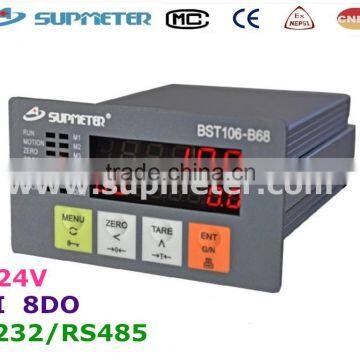

Ration Batching Controller

Specifications

Technical Specification

Power Supply

Operating Voltage: DC24V±20%.

Max. Power: 5W.

Display

14-bit red LED digit display screen for English character and digit display.

Kaypad

4 keys for Menu&Shortcut mode operation with key tone.

Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.

Loadcell Signal Input Interface (LOADCELL)

1 Weighing Signal Input: 0~22.5mV.

Excitation Voltage Output: DC9V.

Max. Connection Quantity: 4 Loadcells (350Ω).

Weighing Accuracy

24-bit Σ-ADC with 130,000 internal code [AD value] used.

Sampling Frequency: 200Hz.

Zero Drift: ±0.1μV/°C RTI (Relative to Input).

Gain Drift: ±5ppm/°C.

Non-linearity: 0.005%FS.

Switch Signal Input DI Interface (CN1)

6 Normally Open Switch Inputs.

Switch Signal Output DO Interface (CN2)

8 Normally Open Transistor Switch Outputs.

Capacity of Transistor Switch: DC24V, 250mA.

Analog Signal Output AO Interface (CN1)

1 Optional and Definable Analog Signal Output: 4~20mA.

Non-linearity: 0.05%FS.

Digital Communication Interface (COM1)

Optional: RS232/RS485.

Connectable: IPC/PLC and Remote Display Terminal.

Outline Dimension: 110 × 62 × 150 mm (W×H×D).

Cut Dimension: 94 × 47 mm (W×H).

Weight : Approx. 0.5kg.

Temperature and Humidity

Service Temperature: -25°C to +40°C.

Storage Temperature: -30°C to +60°C.

Relative Humidity: Max. 85%RH.

IP Grade: IP50.
