Home > Products > Concrete Equipment > High quality self loading concrete mixer with good engine,best portable concrete mixer,mini concrete mixer for sale

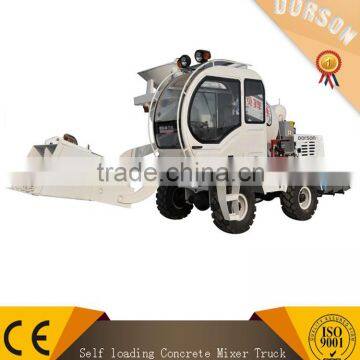

High quality self loading concrete mixer with good engine,best portable concrete mixer,mini concrete mixer for sale

FOB Price

USD $10,000 - $40,000 / Set

1 Set(Min.Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	DORSON	Model Number	DLXJB400
Motor Power	85kw	Mixing Power	xxxx
Charging Capacity	xxx	Reclaiming capacity	4.0m3, 4.0m3portable concrete mixer
Speed of Mixing Drum	0-14r/min	Water Supply Mode	self supply water system
Working Cycle Period	portable concrete mixer, portable concrete mixer	Discharge Way	Automatic
Outline Dimension	7040x2600x3400mm	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

High quality self loading concrete mixer with good engine,best portable concrete mixer,mini concrete mixer for sale

Product Introduction

Mixing drum capacity 6.1 m3, discharge opening height 1.8meters

Output volume of production capacity: 1.2 m3 / cans, 4.8 cubic meters/hour

Wuxisida engine 490 boost, water-cooled, 4 cylinder / 4.836 litres, 48 kw / 2400 RPM

Yunnei 490 boost, water-cooled, 4 cylinder / 4.836 litres, 48 kw / 2400 RPM

Transmission way full hydraulic pressure drive, 4 wheel drive, wheel steering, domestic axle

Walking speed 2 km/hour at low speed, high speed 10-20 km/hour

Cab drive on the left, turn, prevent falling object type bridge, the side loading shovel

Hydraulic system of domestic hydraulic system, closed loop, used in hydraulic transmission and cylinder rotate

Four lever hydraulic electric joystick

Bucket 270 litres, hydraulic valve

Chute hydraulic adjustment point of view, in order to increase the length of the discharge

Hydraulically driven self-priming pump, washing with high pressure water pump vehicle, electronically controlled self-priming pump, take 100 kg water per minute

Barely able to brake brake, the double independent circuits

Tire construction machinery tires 12-16.5

24 v power system

Diesel oil tank: 35 litres, hydraulic tank: 120 liters

Weight 3200 kg

Overall dimensions length: 5.6 meters wide, 1.9 meters high, 2.6 meters

Measuring electronic weighing, water meter

Specification

Mixing system	Drum Capacity 6.1m³,height of 1.9m discharge
Production Capacity	Concrete output:4m³/can
Engine	Wuxi SD4108, 85KW,turbo charged engine
Transmission	280 Hydraulic torque converter fission,4 wheel drive, two wheel steering,10T hydraulicwheel edge drive axle
Walking Speed	Low speed 2km/h, high speed 26km/h
Cab	Left-seat drive, anti-tilt ,FOPS Cab, front loading shovel
Hydraulic system	hydraulic systems, open loop for hydraulic transmission and drum rotation
Operating lever	Electronically controlled four- speed joystick
Bucket	700 liters, hydraulic valve
Chute	Hydraulic adjustable angle ,for increasing the discharge length
Water supply system	Hydraulic driven Auto-priming pump, washing vehicle with high pressure water pump.24V Electronically controlled Auto-priming pump with 2*400L water pump
Brakes	Air brake brakes ,dual independent circuits
Tire	1670-20 construction machinery tires
Power system	24V
Fuel tank	Fuel tank 118L.Hydraulic oil tank 118L
Weight	7100kg
Dimensions	The length is 7.01M,after disassembling could pack in 40HQ container
Measure	Electronic weighting, water measuring control ,formula controlled
Other	Driving images

Figure Photos

detial Photos

Packing Photos

Qualification&Certification

Customer Visting
