Strong Powerful Best Selling Fence Wire Drawing Machine

 Strong powerful best selling fence wire drawing machine

Structure of fence wire drawing machine:

The equipment consists of main reduction box.die casing, wheel frame, sash brace and electrical control system. The spinning drawing blocks are driven by JZT series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body. The gear pairs are lubricated with oil.
In order to lower residual heat on the surface of the block, the cooling means is installed in interval of the block. To reduce its working temperature, the machine is soaked in cooling water.
The machine runs with carvel or linkage. The safety halt gear is installed by the position of operating block.

Transmission System: Strong narrow joint V-belt; strong narrow joint V-belt and spiral bevel gear; strong narrow joint V-belt + standard gear box transmission.
Mode of speed: adjustment AC frequency conversion control
Pay-off Method: Pay-off machine or spool pay-off machine
Take-up Method: I-Spool take-up machine or trunk pay off machine
Material: Suitable for Drawing Welding rod; welding Wire (gas protection welding wire and submerged arc welding wire); steel wire (medium, low carbon steel wire, stainless steel wire); Wire and cable (copper wire, aluminum wire) and other metal wires
* Various combined drawing equipment can be designed according to the customers' requirements

parameters of fence wire drawing machine:

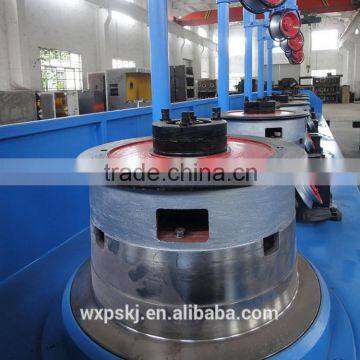

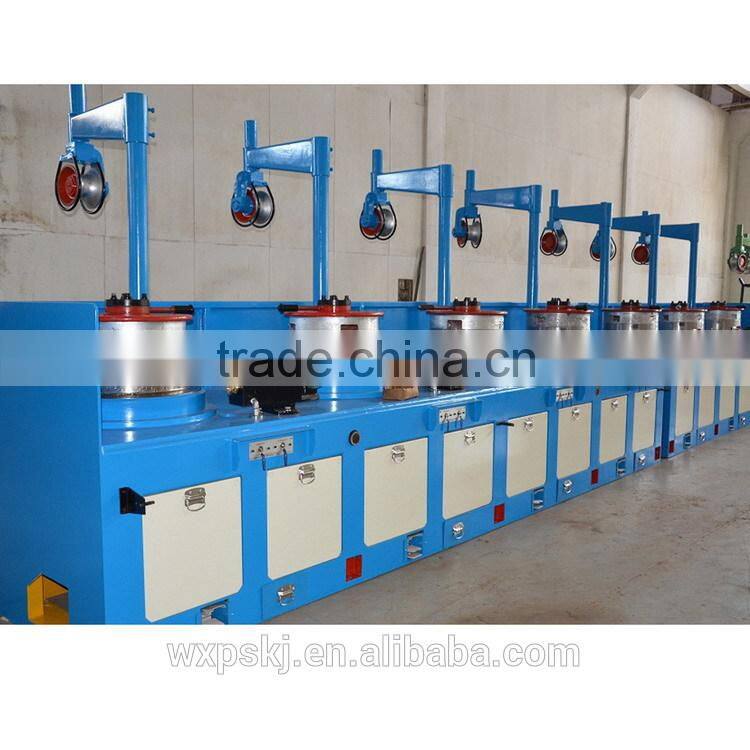

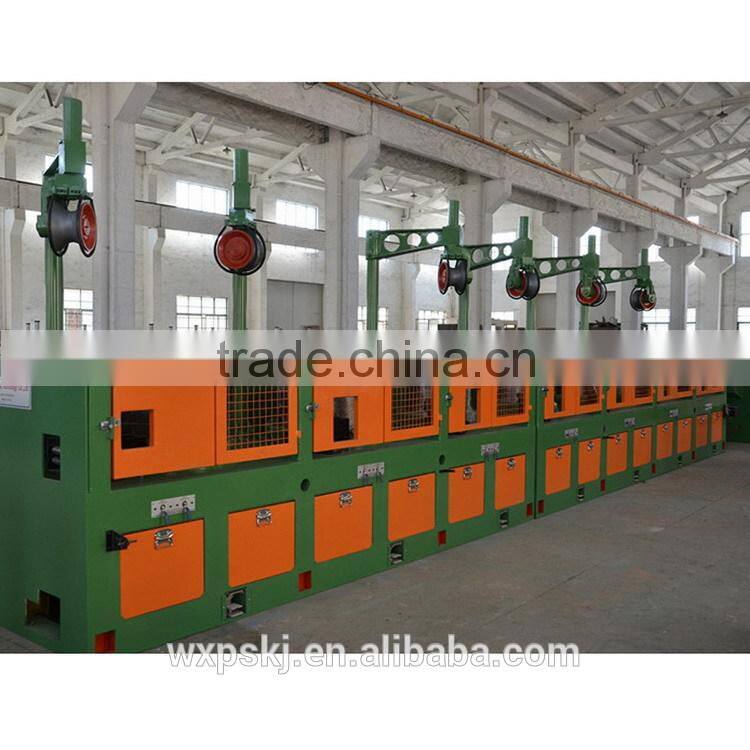

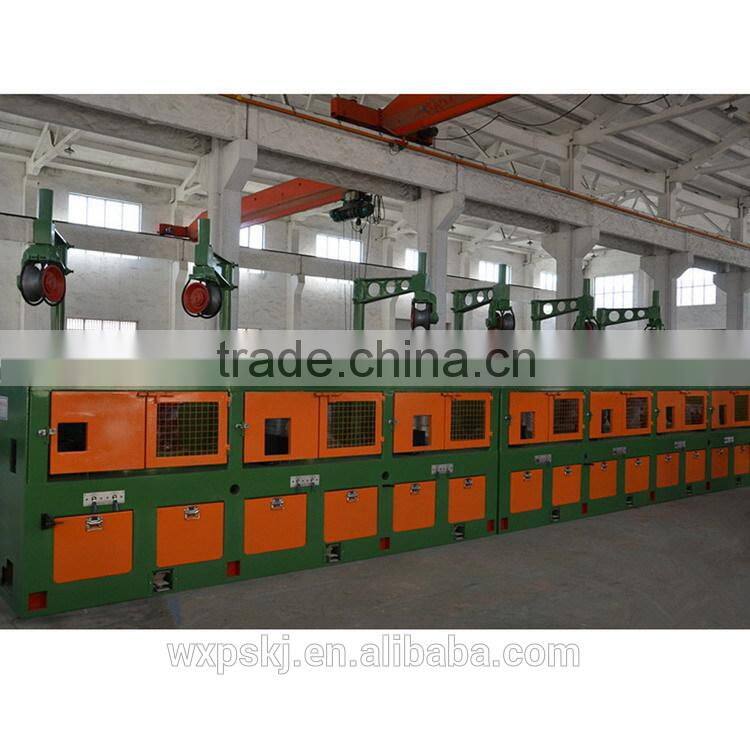

Pictures of fence wire drawing machine:

Flow Chart
