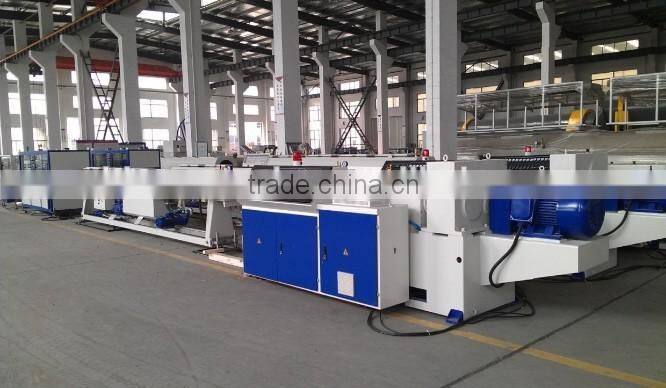

PVC UPVC pipes tubes production line
- 10 Set / Sets per Month
- QINGDAO
- T/T
You May Like
-
PP PE PVC corrugated flexible hose extrusion machine
-
plastic single wall corrugated pipe machine
-
plastic PA PVC PP PE corrugated hose machine line
-
Plastic Single wall corrugated tubes machinery
-
plastic single corrugated pipe machinery/extrusion machine
-
high output of PP PE PVC single wall corrugated tubes machine
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | automatic | Place of Origin | Shandong, China | |
| Brand Name | KEJIE | Model Number | KEJIE | |
| Voltage | 380V | Power(W) | 45KW | |
| Dimension(L*W*H) | 20*2.5*2.5 | Weight | 15T | |
| Certification | CE,IS9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

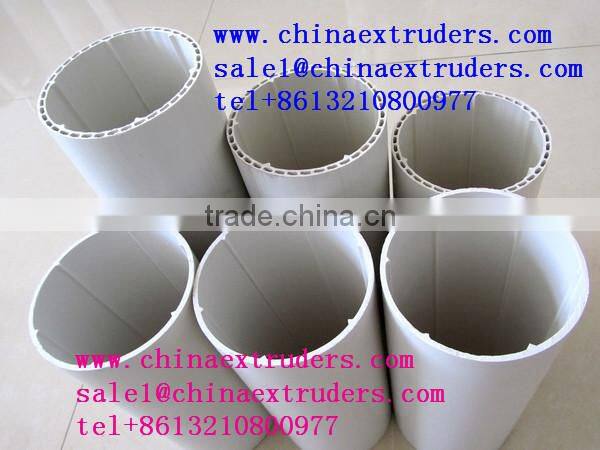

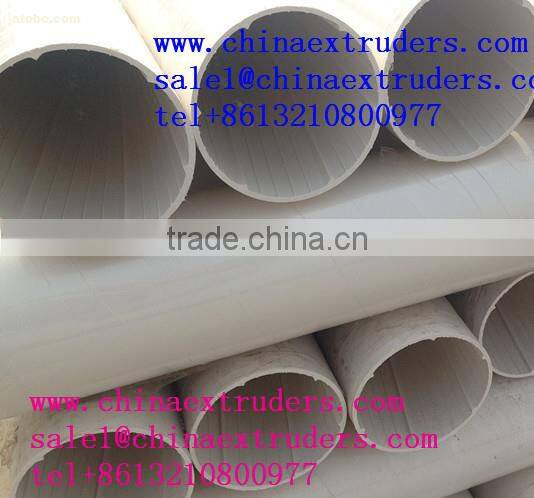

PVC UPVC pipes tubes production line
Application :
Drainage water and water supply pipe in construction field.
Drainage water and water supply pipe in agriculture field.
Drainage water and water supply pipe in industrial field.
Wire and electrical cable protection pipe
Multi-function pipe.

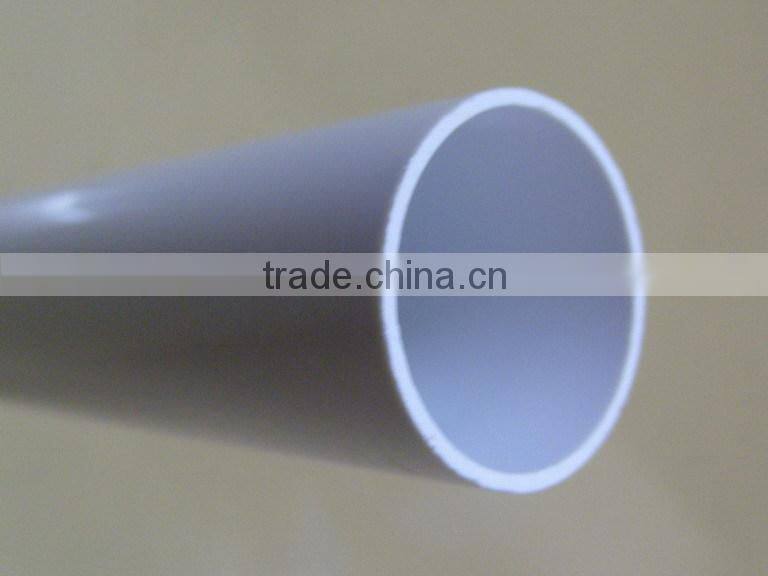

PVC round pipe machine line
PVC sqare tubes manufacture extrusion machinery
This line is use CPVC material, have many dimension.Such as: GF63;GF110;GF160;GF250;GF400;GF630,and so on.
Process flow
CPVC PVC UPVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator →

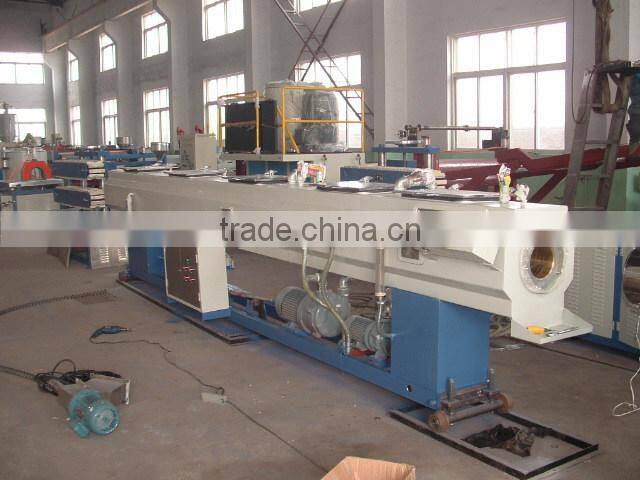

vacuum forming machine → haul off machine → cutting machine → discharging rack
Technical Parameters:
Model number | PVC-16/63 | PVC-20/110 | PVC-50/160 | PVC-75/250 | PVC-110/315 | PVC-200/450 | PVC-315/630 | PVC-500/800 |
Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm | 500-800mm |
Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h | 650kg/h | 800kg/h | 1400kg/h |
Production rate | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min | 0.1-1m/min | 0.07-0.7m/min | 0.05-1 m/min |
Extruder model | SJZ-50/105 | SJZ-50/105 | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | SJZ-92/188 | SJZ-105/220 |
Installed power | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw | 305kw |
Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm | 1350mm |
Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m | 38*3.2*2.8 m | 42*3.5*3.2 m |
