Plastic HDPE PE PP PPR Pipe Extruding Machinery

Specifications

plastic HDPE PE PP PPR pipe extruding machinery:
1>high efficiency extruder
2>Used for water and gas supply
3>ISO,SGS

     plastic HDPE PE PP PPR pipe extruding machinery :

   1,The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding.

   2,Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.

   3, Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.

   4,Caterpiller of the hauling machine adopts anti abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.

   5,New generation auto dust-free cutting blade realizes smooth cutting secant, high precison and low noise.

   plastic HDPE PE PP PPR pipe extruding machinery :

Applied size: 16-630mm

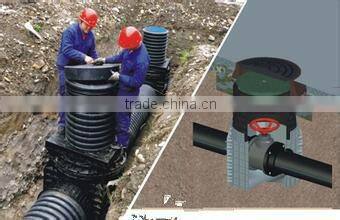

PE Pipe Extruder nowadays used in many fields, such as single layer pipe,multi-layer composite pipe, agriculture irrigation pipe and cable protection pipe. water supply & gas supply pipes products.

     plastic HDPE PE PP PPR pipe extruding machinery :

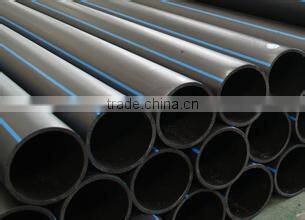

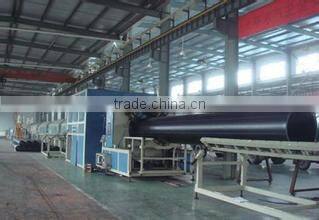

HDPE Water Pipe Product Line

Extruder

 single screw extruder of polyolefin pipe production line is specialized designed for polyolefin products. The design of screws can provide high-speed cutting and mixture for polyolefin material during the process. The special cooling way can prevent the obstruction of material caused by the transportation of heat. Special cooling accessory is installed in ‘reduced speed’ box to lower the high temperature caused by high-speed teeth of screws. Then the good quality and high capacity can be obtained.

     plastic HDPE PE PP PPR pipe extruding machinery :

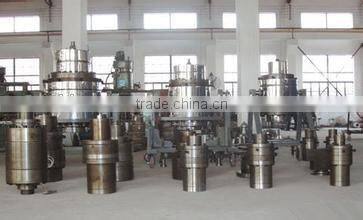

Polyolefin moulding

n       Design of flow channel can avoid the dead spots and stagnation zones

n       Spiral channel increase the heating area of material, lower the melting temperature

n       Large-volume flow channel have equality pressure of melting, decrease the pressure loss.

n       Mandrel design with rigid construction, avoid floating.

n       Easy assembly / disassembly

     plastic HDPE PE PP PPR pipe extruding machinery :

Vacuum Calibrator

 The metal pips (inside and outside) use stainless steel pipes. With plastic adjustable sprayer and various internal pipes for adjusting the direction, the vacuum pressure inside can control the temperature and level of water, which can be controlled by setting system too.

     plastic HDPE PE PP PPR pipe extruding machinery :

Spray Cooling Bath

 Transparent soft PVC films are installed on both sides, can be pull up for easy control. Six rows of sprayers are inside and guarantee the surface of pipes having enough cooling. Internal water temperature control system provides suitable water temperature. Two-channels can keep normal production during the clean up of channel.

      plastic HDPE PE PP PPR pipe extruding machinery :

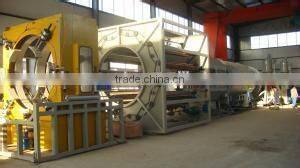

Haul-off Units

 The haul-off units can be designed in double-belts, triple-belts, four-belts, six-belts, etc. The belts have independent moving system and the clipping power is controlled by air pressure. Belts are following the direction of nylon slides. Stable with less vibration. Made in good materials and can be durable.

     plastic HDPE PE PP PPR pipe extruding machinery :

Cutting Devices

 offers planetary saws for polyolefin pipes cutting. The saws are made in platinum steel. Different clipping system is used for different sizes of pipes to guarantee the stability of pipe cutting. We use Siemens PLC control system to provide an accurate cutting.
