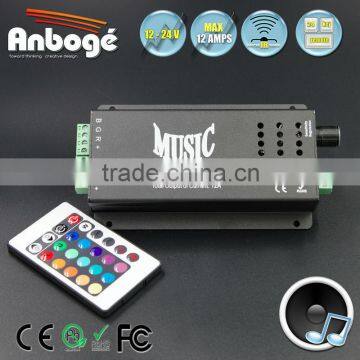

IR Wireless Remote Music RGB 24keys led controller Black Aluminum RGB controller DC12-24V 4A/CH

  Product Details

Music controller is a universal type of high performance power controller, adopts the most advanced

PWM (pulse-width modulation) control technology.Can be controlled by persistence of pressure

full-color LED lighting products.

 Product Features:

Infrared wireless remote control

Voice receiving sensitivity is adjustable

3 circuits of output more convenient wiring

Two kinds of acoustic change mode selection

Wide input voltage high power output

16 kinds of static color changing

 brightness and dynamic adjustable

 Specifications:

Supply Voltage:DC12V~24VOptional

Output:3 CMOS Open drain Output

Output current:4A/CH

Output power:12V:<144W, 24V:<288W

Working temperature:-20℃-60℃

Controller size:L140×W86×H26mm

Remote controller size:L86×W52×H7mm

Packing size:L170XW90XH40

Net weight:220g

Gross weight:250g

Directions of use:

To connect the load line first, then connect the power cord;Before power on to ensure no short

circuit between the cables;

Controller using infrared remote control operation, through the remote control can control the light switch,

16 kinds of color choice, two kinds of dynamic change model, two kinds of acoustic model,

in the static mode can adjust the brightness, can adjust speed in the dynamic model.

Package including:

1 * Remote Control Box
1 * Remote Control
