Aluminum insulated flexible air duct for air conditioning
- Ningbo or Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Insulated flexible duct Aluminum insulated flexible air duct
-
Hot air conditioning heat resistant insulation foil
-
Factory direct fiberglass insulation with aluminium foil duct flexible aluminum foil insulated duct
-
Heat air conditioning insulated aluminum flexible duct machine
-
Heat resistant flexible pre insulated aluminum duct
-
China manufacture high performance pipe insulation aluminum foil insulation tube
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Woofun | |
| Model Number | WF-insulated flexible duct | Type | Other, HVAC Systems, insulated flexible duct |
Product Description

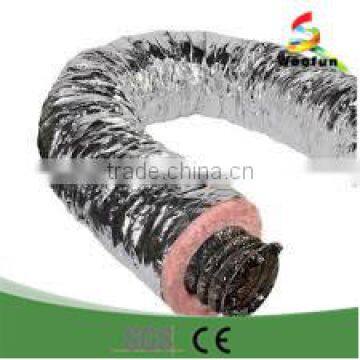

Aluminum insulated flexible air duct for air conditioning
Insulated Flexible Duct is a range of fully flexible thermally insulated ducting, which has been specially designed for the HVAC market. Its range has been developed to minimise the heat gain or loss resulting from the temperature difference between the air flowing in a duct and the surrounding air.The vapour barrier prevents condensation forming on the outside of ducts carrying air at lower temperatures than the surrounding air.
Features:
- Ideal for use for permanent and mobile air condition units.
- Compressible and easy to transport.
- Insulation maintains temperature of air inside hose.
- Very cost effective insulated duct.
- Provides acoustical as well as thermal insulation.
Applications: Recommended for industrial or residential air movement applications.
Temperature Range: -20 F to +160 F Sizes I.D. (inches):4, 6, 8, 10, and 12 Inch I.D.Custom sizes up to 24" ID available with a 1,000 ft. minimum.
ID Tolerances: To 12 Inch: -0.00 to + 0.125 Inch
12 Inch and over: - 0.00 to + 0.250 Inch
Standard Length: 25 Feet.
Standard Colors: Metallic silver
End Finish: Plain Cut
Markets: A/C Ventilation, Chiller, Cold Air Supply, Confined Space Ventilation, Dehumidification, Fans and Blowers, Utility Blowers, Ventilation, Wave Pool Blowers
Aluminuminsulatedflexibleairductforairconditioning is manufactured from aluminum foils (metallized Mylar),laminated incorrporating toally encapsulated helically spring wire.which provides outstanding resistance and durability. With glasswool (fiberglass) blanket as insulation part,use for air conditioning system.
Product composition of insulated aluminum flexible duct:
Type 1: Single layer aluminum foils as core duct ( Item no.: Supair-005)
Made up of 1 layer Aluminum foils/ 1 layer Polyester with steel wire (Core Duct)
Glass wool (fiberglass) blacket as insulation part
Aluminum foils sleeves (Jacket)
Type 2: Double layer aluminum foils as core duct (Item no.: Supair-006)
Made up of 1 layer aluminum foils/1 layer Polyester/1 layer aluminum foils
with steel wire (Core Duct)
Glass wool (fiberglass) blacket as insulation part
Aluminum foils sleeves (Jacket)
Glasswool (Fiberglass) material:
Thickness and Density of Glass wool (Fiberglass) | |||
16kg/m3 ,25mmT 1 lb x 1 inch(T) | 24kg/m3 ,25mmT 1.5 lb x 1 inch(T) | 32kg/m3 ,25mmT 2 lb x 1 inch(T) | 32kg/m3 ,50mmT 2 lb x 2 inch(T) |
Technical parameter:
Air Velocity | 30 m/s (max) |
Operating pressure | 2500 Pa (max) |
Temperature range | -30℃ to 140 ℃ |
Fire resistance | Yes,difficult to ignite |
Thickness of Aluminum foils core duct | 27 micron (Supair-005 type), 32 micron(Supair-006 type) |
Product Size(Diameter) and Length:
Item: Aluminum Flexible Duct ( Supair-001 & Supair-002 Type)
Size | 3" | 4” | 5” | 6” | 6.5" | 8” | 10” | 12” | 12.5” | 14” | 16" | 18" | 20" |
Diameter | 60mm | 102mm | 127mm | 152mm | 165mm | 203mm | 254mm | 305mm | 315mm | 356mm | 400mm | 450mm | 500mm |
Length | 3m 5m 6m 10m 25feet available | ||||||||||||
Packaging | 1 piece per carton box with plastic bag inside | ||||||||||||
we have free sample availble.
Thank you for visiting, if you have any questions, please feel free to contact me!
