17FSN fm Transmitter 30w 1U

Specifications

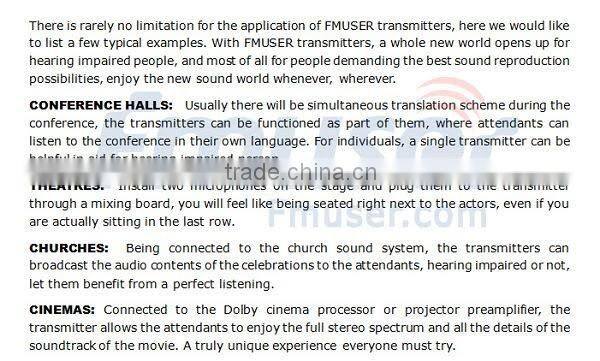

Applications

-------------------------------------------------------------------------------------------------------------

30W Fmuser FMT-1U FM transmitter broadcast Silver

Description:

-------------------------------------------------------------------------------------------------------------

Fmuser FM transmitter is a professional grade low power FM transmitter operating in the commercial FM band (87 - 108MHz).
It is intended for indoor (churches, theaters, cinemas, auditoriums, conference halls , Hostels, Commercial Plaza ,Shopping Center,Government Building, Sports Center, Fitness Center,Conference) or outdoor (business parkings, tourist attractions, talking signs, Rural radio, Outdoor Advertising ,Outdoor Activities ,Orienteering) short range broadcasting in a variety of applications:  hearing assistance, translation, information, sound re-enforcement.
Its outstanding RF and audio performances, ruggedness, reliability and versatility make FMuser FM transmitter stand out from conventional hearing assistance systems.

Features

-------------------------------------------------------------------------------------------------------------

• User programmable frequency

• Easily choose your frequency LCD and buttons,No manual tuning required

• Japan Phase Lock Loop (PLL) Technology

• Works with standard FM receivers

• Hi-Fi Steroe audio quality

• Adjustable input level with over modulation indicator

• Stereo 1/4-F audio input connector

• Choice of GP antenna or telescopic antenna

• Temperature protect

• Standing Wave Protect

• 5 years warranty

Technical Specifications

-------------------------------------------------------------------------------------------------------------

• input voltage:AC110/220V

• operating current:500mA

• Frequency:87~108MHz

• Modulation:WFM

• Frequency Step:0.1MHz

• Frequency stabilization method:PLL

• deviation:±75 KHz

• RF Output:40W

• Output Impedance:50 Ω

• Harmonic radiation:-60db

• Frequency Response:20~15000Hz

• Distortion:0.1 %

• Pre-emphasis delay:50us

• Stereo Separation:45db

• Input level:-15 dbV

• Input impedance:10KΩ

• SNR:70db

• Size:480*200*44mm

• Color:Silver

• Weight:5kg

• Working temperature:0~45 °C

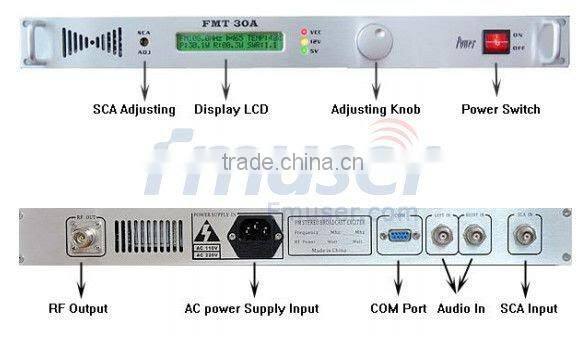

Front and Back panel description

-------------------------------------------------------------------------------------------------------------

About Us

-------------------------------------------------------------------------------------------------------------

FMUSER is a high tech cooperation dedicated in providing solution project designing, technology exploring, manufacturing and marketing of fm transmitters. FMUSER has been in cooperation with plenty of countries overseas manufacturing fm transmitters as per customers’ needs, the business map reached to countries and regions like United States, United Kingdom, Japan and lots of countries from European and Southeast Asia. FMUSER is currently one of the biggest manufacturer of fm transmitters in china.

TOURIST SITES AND AUDIO GUIDED TOURS

Allow tourists and visitors to live a unique experience and have them discover all the attractions of your city and area by transmitting informations with a Fmuser transmitter.

People will get all the information on historic sites and other attractions on their car radio or portable FM receiver; no need to rent and bring back a dedicated, non-standard receiver, which can be cumbersome and impractical.

Products list

Permit licenses

-------------------------------------------------------------------------------------------------------------

In Canada:There is a permit or license required on your particular application using transmitters, so please contact your nearest office Industry Canada to obtain related information.

In the U.S.A: There is a permit or license required on your particular application using transmitters, so please contact your nearest FCC office to obtain related information.

Update Date:2011-05-14 10:21:34
