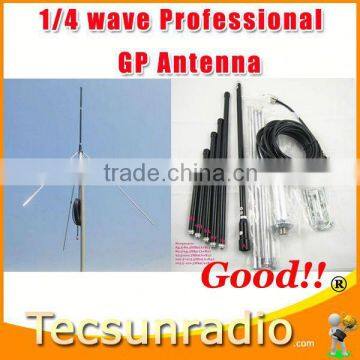

Fmuser 1/4 wave Professional GP Antenna 4g modem external antenna

Specifications

1/4 wave Professional GP Antenna for 5w,7w,15w,30w,50w,100w FM Transmitter BNC or NJ with 8meters 26ft cable

This is the only one  1/4 wave GP antenna in the world, which can easily adjust the accuracy frequency for fix your FM transmitter.It is also the design of anti-rain and lightness. It is very sure that this antenna is your best choice for your FM transmitter. 4g modem external antenna

Features:

-----------------------------------------------------------------------------------------

• Made entirely of auminum alloy.
• No need any worries about water
• Adopting the design of anti-rain, even under the heavy rain, the water will not flow into interfaces, resulting in damage.wireless antenna 10km
• The only one of  1/4 wave GP antenna in the world, which can easily adjust the frequency for fix FM transmitter.
• Frequency:  89.5MHz-94.5Mhz(A+B1)     95.5-100.5Mhz (A+B2)    100.5Mhz-105.5Mhz(A+B3)wireless antenna 10km
• Center Frequency: 92MHz /  98MHz / 103MHz
• Gain: 3.5dB
• VSWR: lower than 1.5
• Impedance: 50Ω
• Power: 1W-100W  (5w,7w,15w,25w,30w,50w,100w)
• Cable connector: BNC

 4g modem external antenna

Picture Show:

To know the transmitter:

-----------------------------------------------------------------------------------------------

How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain,  using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more transmitter equipmentwireless antenna 10km

 4g modem external antenna

Below are the approximate range of different power FM Transmitters. ( The range is  radius,The following distance is bassed on the antenna . )

• 50W TV Transmitter :3M ~10KM
• 100W TV Ttransmitter : 5KM ~ 15KM
• 300~500W TV Transmitter : 10KM ~20KM
• 1KW FM Transmitter :  15KM ~ 25KM
• 3KW FM Transmitter : 30KM ~40KMwireless antenna 10km

• TV-VHF-5KW:with the 4 Bay DV1 antenna:45KM
• TV-VHF-10KW:with the Slot antenna:80KM
• TV-UHF-5KW:with the Slot antenna:45KM
• TV-UHF-10KW:with the Slot antenna:80KM

• Digital TV 50~100W:10KM~15KM
• Digital TV 300~500W:25~30KM
• Digital TV 1KW:40KM
