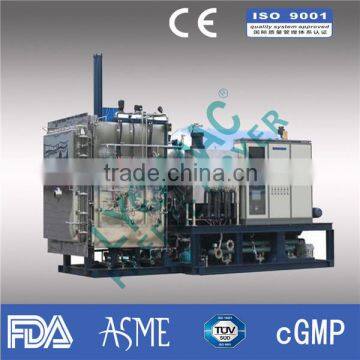

FDA/cGMP complianced freeze drying machine
- Shanghai
- T/T
You May Like
-
Pilot freeze drying machine -20KG capacity for pharmaceutical
-
freeze drying machine-500KG capacity for pharmaceutical
-
Laboratory freeze drying machine-4KG capacity for pharmaceutical lab lyophilizer
-
Laboratory freeze drying machine-12KG capacity for pharmaceutical-lab lyophilizer
-
500KG freeze dryer for pharmaceutical & Biological
-
50Kg~200Kg food freeze dryer|food Lyophilizer|food freeze dryer|food freeze drying machine
Quality Choice
Product Details
| Condition | New | Type | Freeze Drying Equipment | |
| Place of Origin | Shanghai, China | Brand Name | LYOMAC | |
| Model Number | lyopro-1.0,2.0,3.0,5.0,7.5 | Voltage | 380/440V, 50/60Hz | |
| Power(W) | 16~51KW | Dimension(L*W*H) | 3000*1200*2500 | |
| Weight | 3000KG ~ 8000KG | Certification | CE TUV / GB150 /FDA 21 CFR/cGMP | |
| Warranty | 16 months after delivery | After-sales Service Provided | Overseas service center available |
Product Description
This freeze dryer has reliable running in last five years! it has installed in USA, Russia ,India and latin America countries. and with CIP&SIP. SCADA system available. perfect for pilot scale production for vial and clinical materials. we offer all standard with FDA &cGMP regulation.
Compact design, Reliability running under high performance, vacuum or air filled stoppering, Eutectic device detector are available. Control system designed with multi-recipe, user can choose different recipe for different process. The control system can automatically validate the machine performance before each production cycle, thus the safety for each production cycle can be ensured.
Eutectic point detector
Organic solvent collector
Inter-shelf distance adjust mechanism
Vacuum or air filled stoppering (with pressure adjustable)
Auto moisture judgment on control system
CIP/SIP
Chamber isolation valve with mushroom/butterfly type
Constant height loading
Chamber door with auto/manual lock
Chamber vacuum adjust function
Qualification document: IQ,OQ,DQ
Type | LYOPRO-1.0 | LYOPRO-2.0 | LYOPRO-3.0 | LYOPRO-5.0 | LYOPRO-7.5 |
Shelf area (m2) | 1.08 | 2.16 | 3.24 | 5.40 | 7.56 |
Shelf size (L*W*T)(mm) | 600*450*20 | 900*600*20 | 900*600*20 | 1200*900*20 | 1200*900*20 |
Useable Shelf No. | 4 | 4 | 6 | 5 | 7 |
Vial loading quantity Φ16 Φ22 | 4400 2200 | 9000 4500 | 14000 7500 | 20000 10000 | 32000 16000 |
Inter. Shelf distance(mm) | 100 | 100 | 100 | 100 | 100 |
Ice capacity (KG) | 20 | 40 | 60 | 100 | 150 |
Shelf ultimate cooling temperature(°C) | ≤50 Min | ≤50 Min | ≤50 Min | ≤50 Min | ≤50 Min |
Condenser ultimate cooling temperature(°C) | -75 | -75 | -75 | -75 | -75 |
Ultimate vacuum(Pa) | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
Installation dimension(L*W*H)(mm) | 3000*1200*2600 | 3800*2000*2600 | 4000*2000*3000 | 5000*1750*3100 | 6000*1750*3600 |
Weight(Kg) | 2000 | 3500 | 4500 | 7500 | 8500 |
Power(KW) | 16.5 | 22.0 | 28.0 | 41.0 | 51.5 |
