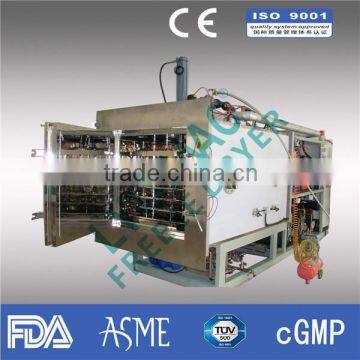

Tray freeze dryer | Tray Lyophilizer |Bulk material freeze dryer FDA, cGMP complianced

FOB Price

USD $50,000 - $300,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Freeze Drying Equipment
Place of Origin	Shanghai, China	Brand Name	LYOMAC
Model Number	lyopro-1.0,2.0,3.0,5.0,7.5,15,20,30,	Voltage	380/440V, 50/60Hz
Power(W)	16~51KW	Dimension(LWH)	700012002500
Weight	10000KG ~ 25000KG	Certification	CE TUV / GB150 /FDA 21 CFR/cGMP
Warranty	16 months after delivery	After-sales Service Provided	Overseas service center available

Product Description

Description

This freeze dryer has reliably running in last decade! it has installed in USA, Russia ,India and latin America countries. and with CIP&SIP. SCADA system available. perfect for pilot scale production for vial and clinical materials. we offer all standard with FDA &cGMP regulation.

Features

Compact design,
Reliability running under high performance,
vacuum or air filled stoppering,
Control system designed with multi-recipe, user can choose different recipe for different process.
The control system can automatically validate the machine performance before each production cycle, thus the safety for each production cycle can be ensured.

Optional System/Part

Eutectic point detector
Organic solvent collector.
Inter-shelf distance adjust mechanism
Vacuum or air filled stoppering (with pressure adjustable)
Auto moisture judgment on control system
CIP/SIP
Chamber isolation valve with mushroom/butterfly type.
Constant height loading
Chamber door with auto/manual lock
Chamber vacuum adjust function
Qualification document: IQ,OQ,DQ

Selection of paramet

Type	LYOPRO-1.0	LYOPRO-2.0	LYOPRO-3.0	LYOPRO-5.0	LYOPRO-7.5
Shelf area (m2)	1.08	2.16	3.24	5.40	7.56
*Shelf size (LWT)(mm)*	60045020	90060020	90060020	120090020	120090020
Useable Shelf No.	4	4	6	5	7
Vial loading quantity Φ16 Φ22	4400 2200	9000 4500	14000 7500	20000 10000	32000 16000
Inter. Shelf distance(mm)	100	100	100	100	100
Ice capacity (KG)	20	40	60	100	150
Shelf ultimate cooling temperature(°C)	≤50 Min	≤50 Min	≤50 Min	≤50 Min	≤50 Min
Condenser ultimate cooling temperature(°C)	-75	-75	-75	-75	-75
Ultimate vacuum(Pa)	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
*Installation dimension(LWH)(mm)*	300012002600	380020002600	400020003000	500017503100	600017503600
Weight(Kg)	2000	3500	4500	7500	8500
Power(K
