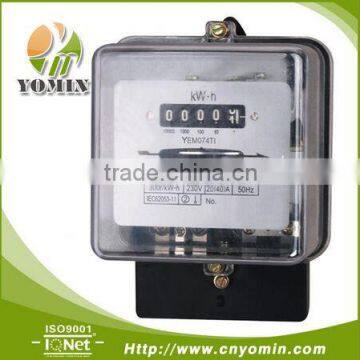

ISO 9001 Factory YEM074TI Single Phase Energy Meter , Electromechanical Active Meter , Counter Energy Meter /

Model YEM074TI single phase electromechanical front board setting active energy

meter is a kind of new style single phase two wire active energy meter, it is

designed on the basis of original DD282 single phase electromechanical meter,

and fully absorb new technologies about electromechanical meter from domestic

and abroad. The meter completely accords with relevant technical requirements of

class 2 single phase active energy meter stipulated in international standard IEC

62053-11. It can accurately and directly measure 50Hz or 60Hz active energy

consumption from single phase AC electricity net, it is used for setting indoor or

out door meter box. The meter has novel design, rational structure, and it can

display total energy consumption by drum wheel mechanical register. It has

following features: compact structure design, small size, economy benefits,

specious appearance, etc.

1. Front board two fixed installation, the cover is made of PC material which is transparent and anti-UV molded overall, the bottom of the meter is made of quality steel which is after double-through antirust processing, and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall.It has following features: economy benefits, specious appearance, etc.
2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact.
3. Voltage components and current components is used of double insulation structure, has good electrical characteristics.
4. Standard configuration voltage circuit and current circuit connect in the case, may select connect outside.
5. Standard configuration bottom bearing is used of single-precious stone bearing, oriented bearing is made of high wear resistance copper alloy bush and stainless steel needle. May select magnetic thrust bearing (Product Configuration code is TA) or double gem bearing (Product Configuration code is TE).
6. All kinds of error adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.
7. Standard configuration 5 digits display by drum wheel mechanical register, may select 6 digits display by drum wheel mechanical register (Product Configuration code is TK).
8. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering).
9. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.
10. Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is TJ).
11. Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is UI).
