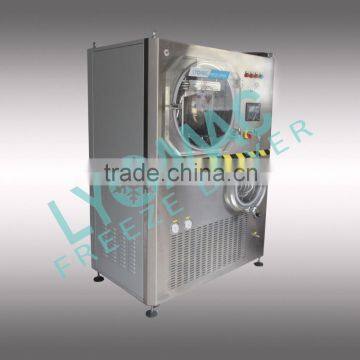

Mini Freeze Drying Machine/lyophilizer Machine/Freeze Dryer for Sale Quality Choice

FOB Price

US$ 40,000 - 80,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Freeze Drying Equipment
Place of Origin	Shanghai, China	Brand Name	LYOMAC
Model Number	LM-1.0	Voltage	380V
Power(W)	16.5kw	Dimension(LWH)	300012002600
Weight	2000KG	Certification	ISO9001
Warranty	12 Months	After-sales Service Provided	Overseas service center available

· Either for tray loading bulk material, and vial production;

· Drying capacity 20L;

· Shelf temperature and chamber vacuum are controllable;

· Auto Operation by computer based SCADA software

Features

· Shelf temperature range from -40 °C~80 °C, and regulatable for processoptimization or development before industrial production.

· Vacuum can be regulatable, by clean air injet, or chamber isolation valve operation, this can accelerate drying process.

· Vial rubber cap closing under vacuum by hydraulic stoppering mechanism.

· Fully stainless steel fabrication, easily clean.

· Both vial and trays can be loaded.

· All critical system backup design to avoid cycle collapsed during process.

Optional System/Part

· CIP(cleaning in place) and SIP(Sterilization in place) system.

· Computer based SCADA system, all data can be recorded by table or curve type, easily print out for preservation.

· Adjustable shelf space mechanism.

· Vial stoppering system.

Specification List

Type	LM-1.0	LM-2.0	LM-3.0
Shelf area (m2)	1.08	2.16	3.24
*Shelf size (LWT)(mm)*	*60045020*	*90060020*	*90060020*
Useable Shelf No.	4	4	6
Vial loading quantity Φ16 Φ22	4400 2200	9000 4500	14000 7500
Inter. Shelf distance(mm) *	100	100	100
Ice capacity (Liter)	20	40	60
Shelf ultimate cooling temperature(℃) *	-55	-55	-55
Condenser ultimate cooling temperature(℃)*	-75	-75	-75
Ultimate vacuum(Pa)	≤1.0	≤1.0	≤1.0
*Installation dimension(LWH)(mm)*	*300012002600*	*380020002600*	*400020003000*
Weight(Kg)	2000	3500	4500
Power(KW)	16.5	22.0	28.0
