Home > Products > All items > hight quality np450 competitive price bulletproof steel plate

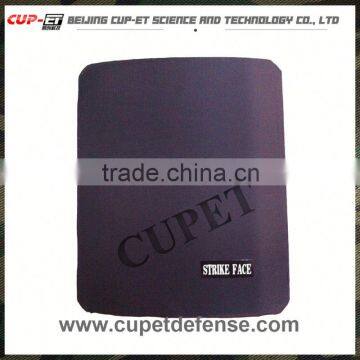

hight quality np450 competitive price bulletproof steel plate

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Tianjin Port China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	CUP-ET
Model Number	cupet-bulletproof steel

Product Description

hight quality np450 competitive price bulletproof steel plate

Product Specification

product	protection level	bullet Weight(g)	Muzzle velocity m/sec	test Range (m)	Thickness(mm)	weapon &Ammunition
bulletproof steel	ENB4 ,NIJIIIA	15.6	495±10	5	2.8	0.44 Magnum
	ENB5,NIJIII	4	950±10	5	6.3	Rifle M16 A2 ,5.56x45 (ssl09)
	BR/FB6 ,NIJLevel III	9.5	830±10	5	6.3	Rifle M16 A2, FN FAL, 7.62x51
	NIJIII-	8	720±10	10	4.4	AK47 7.62x39,MSC bullet
	BR/FB6 ,NIJLevel III	9.7	838±10	10	6.3	M14,M80 7.62x51mm
	NIJ III +	3.56	830±10	10	9	M16 A2 5.56x45 (M193)

Ballistic steel plate technical paremeters

applications	Armored vehicle, bulletproof vest and helmet, armored equipments
chemical	C	Si	Mn	P	S	Cr	Nl	Mo	Ceq
compositions	≤0.32	≤1.8	≤1.1	≤0.015	≤0.008	≤1.5	≤1.8	≤0.5	≤0.70
(wt%)	Ceq-carbon equivalent, Ceq=C+Si/24+Mn/6+Ni/40+Cr/5+Mo/4+V/14
Mechanical Properties	Tensile strength(Rm, Mpa) ≥1650			Yield strength (Rp0.2, Mpa) ≥1400			Elongation (A,%) ≥8%
Impact properties	AKV2 (-400C)≥20J (10mmx10mmx55mm test specimen)
	*-Average of three specimens, transverse to rolling direction
Hardness range	480-530HB
Testing	Brinell hardness test			EN ISO 6506-1			Each heat treatment individual
	Tensile test			EN 10002-1
	Charpy impact test			EN 10045-1			t>10mm
Delivery condition	Quenched and tempered as EN10025-6

Once you book the order, you can come to our factory sampling from each lot to do the field shooting test in testing lab and get the certificate. All the process can be done in our factory. Only we could promise and do it in China. Of course, we also welcome you to visit our factory before you make your decision.

USA Standard NIJ 0101.06

Armor Type	Test Round	Test Ammunition	Nominal Bullet Mass	Minimum Required Bullet Velocity	No.of Shots	No.of Test
II-A	1	9mm FMJ	8.0g 124gr	373m/s (1225ft/s)	6	4
II-A	2	40S&W FMJ	11.7g 180gr	325m/s (1155ft/s)	6	4
II	1	9mm FMJ	8.0g 124gr	398m/s (1305ft/s)	6	4
II	2	357Magnum JSP	10.2g 158gr	436m/s (1430ft/s)	6	4
III-A	1	.357SIG FMJFN	8.1g 125gr	448m/s (1470ft/s)	6	4
III-A	2	44Magnum SJHP	15.6g 240gr	436m/s (1430ft/s)	6	4
III	1	7.62mm NATO FMJ	9.6g 147gr	847m/s (2780ft/s)	6	2
IV	1	.30Caliber M2AP	10.8g 166gr	878m/s (2880ft/s)	1	2

1.Q:How about the quality of your bulletproof products?

A:Quality is vital to our order;our products are made by top-shelf meterial.And we have simple-assigned person following up the orders from the beginning to the end.

2.Q:Is OEM or ODM ok to your company?

A:Yes.Our company can do OEM or ODM for the customer from all the world.

3.Q:Are you a factory or trading company?

A:Yes, we are. we are a factory independentlyto produce a series of bullet-proof products.

4.Q:Can you offer us some sample before comfirming the order?

A:Of course,we are willing to do that.
