bulletproof astm jis gb high quality steel plate low price
- Tianjin Port China
- T/T Credit Card
You May Like
-
k700 bulletproof customized steel checkered plate np500
-
ballistic aluminum bullet proof plate panel wholesale
-
ballistic aluminum oxide bullet proof ceramic plate inserts 5052 h36 h24
-
military bulletproof ballistic KEVLAR&AL2O3 plate
-
military kevlar armor/nij iii/nij iv bullet proof ceramic armoured plates
-
composite aramid compound bulletproofplate
Product Details
| Place of Origin | Shandong, China | Brand Name | CUP-ET | |
| Model Number | cupet-bulletproof steel |
Product Description

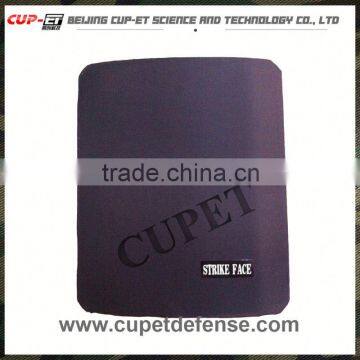

bulletproof astm jis gb high quality steel plate low price
Product Specification
| product | protection level | bullet Weight(g) | Muzzle velocity m/sec | test Range (m) | Thickness(mm) | weapon &Ammunition |
| bulletproof steel | ENB4 ,NIJIIIA | 15.6 | 495±10 | 5 | 2.8 | 0.44 Magnum |
| ENB5,NIJIII | 4 | 950±10 | 5 | 6.3 | Rifle M16 A2 ,5.56x45 (ssl09) | |
| BR/FB6 ,NIJLevel III | 9.5 | 830±10 | 5 | 6.3 | Rifle M16 A2, FN FAL, 7.62x51 | |
| NIJIII- | 8 | 720±10 | 10 | 4.4 | AK47 7.62x39,MSC bullet | |
| BR/FB6 ,NIJLevel III | 9.7 | 838±10 | 10 | 6.3 | M14,M80 7.62x51mm | |
| NIJ III + | 3.56 | 830±10 | 10 | 9 | M16 A2 5.56x45 (M193) |
Ballistic steel plate technical paremeters
| applications | Armored vehicle, bulletproof vest and helmet, armored equipments | ||||||||
| chemical | C | Si | Mn | P | S | Cr | Nl | Mo | Ceq |
| compositions | ≤0.32 | ≤1.8 | ≤1.1 | ≤0.015 | ≤0.008 | ≤1.5 | ≤1.8 | ≤0.5 | ≤0.70 |
| (wt%) | Ceq-carbon equivalent, Ceq=C+Si/24+Mn/6+Ni/40+Cr/5+Mo/4+V/14 | ||||||||
| Mechanical Properties | Tensile strength(Rm, Mpa) ≥1650 | Yield strength (Rp0.2, Mpa) ≥1400 | Elongation (A,%) ≥8% | ||||||
| Impact properties | AKV2 (-400C)≥20J (10mmx10mmx55mm test specimen) | ||||||||
| *-Average of three specimens, transverse to rolling direction | |||||||||
| Hardness range | 480-530HB | ||||||||
Testing | Brinell hardness test | EN ISO 6506-1 | Each heat treatment individual | ||||||
| Tensile test | EN 10002-1 | ||||||||
| Charpy impact test | EN 10045-1 | t>10mm | |||||||
| Delivery condition | Quenched and tempered as EN10025-6 | ||||||||
Once you book the order, you can come to our factory sampling from each lot to do the field shooting test in testing lab and get the certificate. All the process can be done in our factory. Only we could promise and do it in China. Of course, we also welcome you to visit our factory before you make your decision.
USA Standard NIJ 0101.06
Armor Type | Test Round | Test Ammunition | Nominal Bullet Mass | Minimum Required Bullet Velocity | No.of Shots | No.of Test |
II-A | 1 | 9mm FMJ | 8.0g 124gr | 373m/s (1225ft/s) | 6 | 4 |
2 | 40S&W FMJ | 11.7g 180gr | 325m/s (1155ft/s) | 6 | 4 | |
II | 1 | 9mm FMJ | 8.0g 124gr | 398m/s (1305ft/s) | 6 | 4 |
2 | 357Magnum JSP | 10.2g 158gr | 436m/s (1430ft/s) | 6 | 4 | |
III-A | 1 | .357SIG FMJFN | 8.1g 125gr | 448m/s (1470ft/s) | 6 | 4 |
2 | 44Magnum SJHP | 15.6g 240gr | 436m/s (1430ft/s) | 6 | 4 | |
III | 1 | 7.62mm NATO FMJ | 9.6g 147gr | 847m/s (2780ft/s) | 6 | 2 |
IV | 1 | .30Caliber M2AP | 10.8g 166gr | 878m/s (2880ft/s) | 1 | 2 |
1.Q:How about the quality of your bulletproof products?
A:Quality is vital to our order;our products are made by top-shelf meterial.And we have simple-assigned person following up the orders from the beginning to the end.
2.Q:Is OEM or ODM ok to your company?
A:Yes.Our company can do OEM or ODM for the customer from all the world.
3.Q:Are you a factory or trading company?
A:Yes, we are. we are a factory independentlyto produce a series of bullet-proof products.
4.Q:Can you offer us some sample before comfirming the order?
A:Of course,we are willing to do that.
